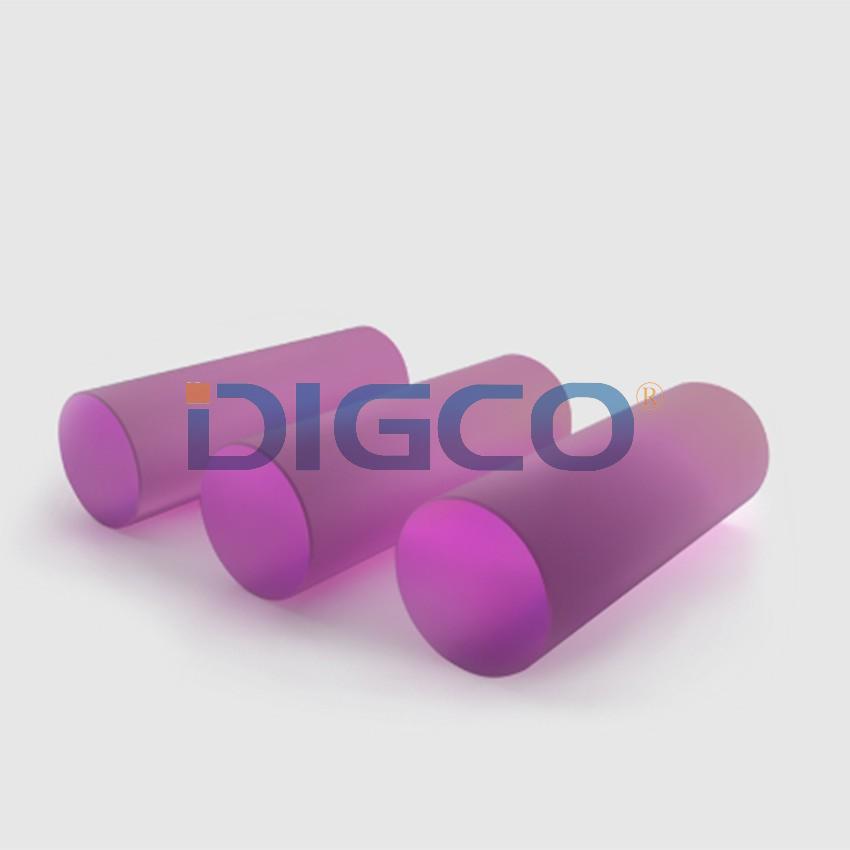

※Long lifetime of 4F3/2 neodymium energy level
※Considerably softer and more brittle than is Nd:YAG
※Nd:YLF (a-cut) crystals that are used inside a laser optical resonator are self polarizing
※Custom crystals available upon request
※For CW and pulsed operation at 1047nm and 1053 nm
※For Materials processing, welding, cutting lasers
Host | LiYF4（YLF） |
Dopant | Nd3+ |
Concentration | ~1.0at% |
Growth Direction of Crystal | [100] or [001] 5 |
Wavefront Distortion | ≤0.25λ/25mm@632.8nm |
Wavelength | 1047nm,1053nm |
Dimensions | Diameter 3~8mm,length 10~120mm |
Tolerances | Diameter+0.00/-0.05mm,length±0.5mm |
Barrel Surface | Fine ground, Polished or Grooved |
Parallelism | ≤10” |
Perpendicularity | ≤5' |
Surface Flatness | ≤λ/10@632.8nm |
Surface Quality | 10-5(MIL-O-13830B) |
Chamfer | 0.15±0.05mm |
Emission cross-section | 1.8 × 10-19 (E||C) cm2@1047 nm 1.2 × 10-19 (E⊥C) cm2@1053 nm |
Anti-Reflection Coating | R≤0.25%@1047/1053nm |
Fluorescence Lifetime | 485μs@1.0at%Nd3+ |
Damage Threshold | ≥500MW/cm2 |
Note: Parameters above can be customized as required. | |
