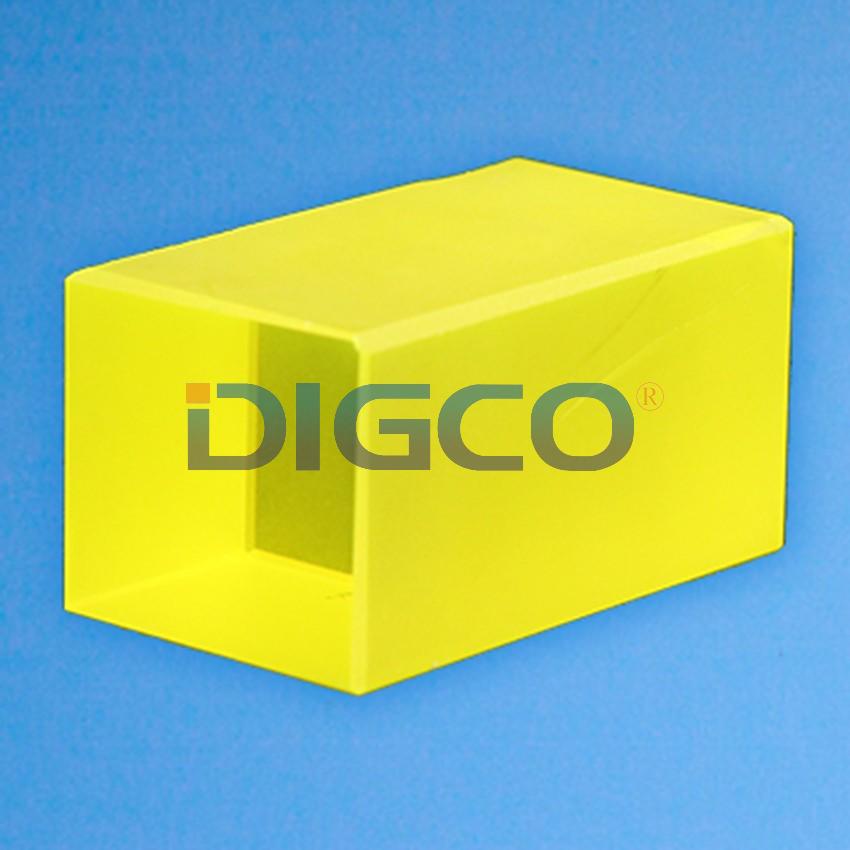

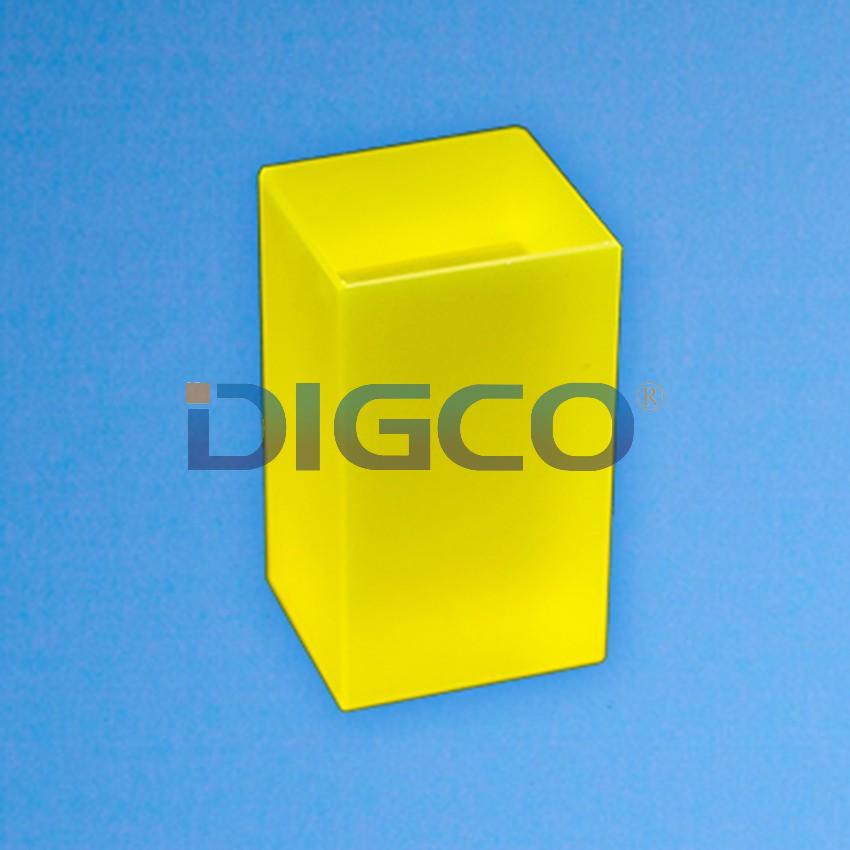

Ce:GAGG cystal

Features:
●High density
●High light output
●High energy resolution
●No self radiation, no deliquescence
Application:
●Medical imaging: X-ray computed tomography (CT), positron emission tomography (PET), etc
●Security check
●Nuclear energy and high energy physics
●Scanning electron microscope (SEM)

EMAIL

Chemical formula

Ce:Gd3Al2Ga3O12

Growth method

Czochralski

Atomic number

54.4

Density

6.63g/cm³

Hardness

8 Mohs

Melting point

1850℃

Coefficient of thermal expansion

TBA*10-6

Crystal orientation

<0.5°

Diameter tolerance

±0.05mm

Parallelism

<30″

Perpendicularity

<15′

Chamfering

<0.1*45°

Verticality Maximum size

MaxФ60mm

Note: Parameters above can be customized as required.
