Max. range 1500m
Resolution 0.1m
905nm diode laser
Single and QSW operation
Microminiaturized dimensions
OEM intigration for outdoor systems
Ranging Parameters | |
Visibility under all sight conditions | Not less than 10km |
Humidity | ≤70% |
Ranging distance | 3~1500m @70% Reflectivity |
Anti-Light(outdoor) | 100KLux |
Functioning Parameters | |
Wavelength | 905nm±5nm |
Laser divergence angle | ~4mrad |
Max.measurement time | ~1s |
Ranging accuracy | ±1m |
False rate | ±10cm(<10m),1%(>10m) |
Minimum measuring range | 0.05m |
Ranging resolution | 0.1m |
Operating Voltage | Typical DC 3.3V(2.V-3.5V) |
Operating Current | 100mA |
Weight | ~18g |
Power | 330mW@3.3V |

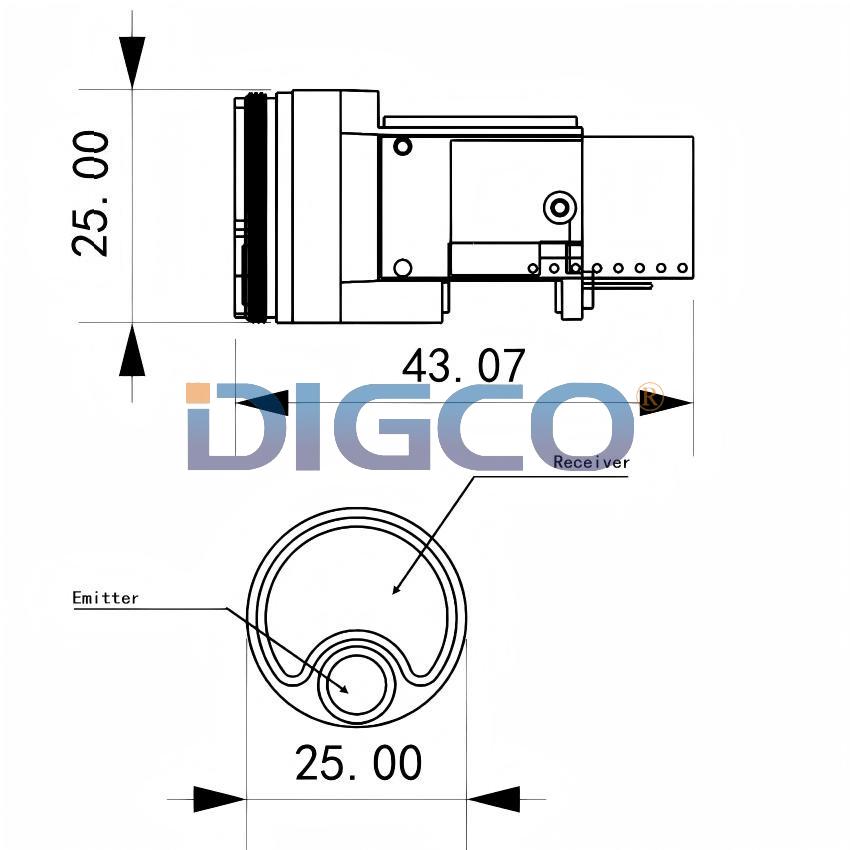

Size | Φ25mm×43.07mm |
Operating temperature | -20℃～+50℃ |
Storage temperature | -45℃～+70℃ |
Communication interface | UART, 115200bps(default) |
Maximum range 600m/1000m/1500m will be finalized as request. | |
