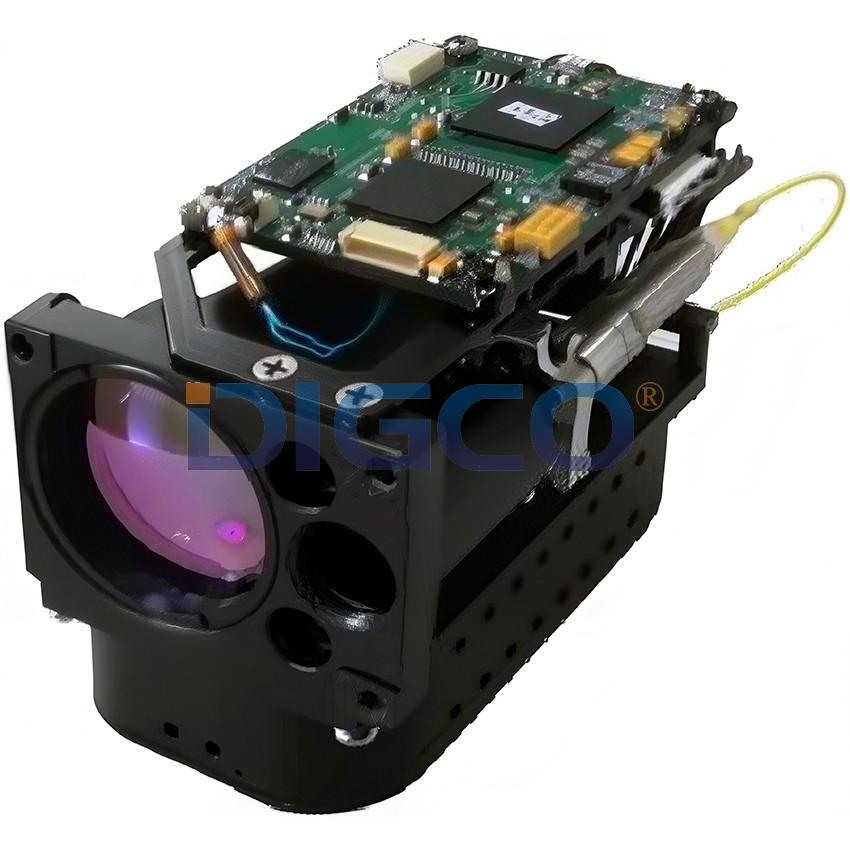

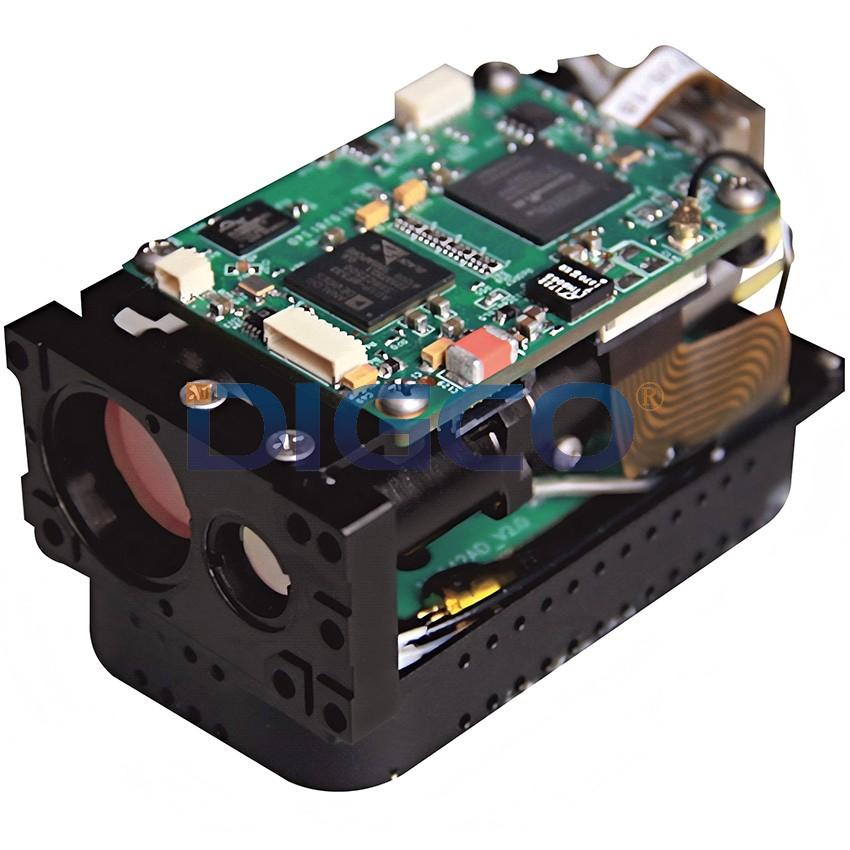

• Compact and lightweight
• Beam divergence ≦0.5 mrad
• Low power consumption
• Measurement rates up to 1Hz
• Laser 1.55 µm wavelength
• Eye safe Class 1M
• Easy for OEM systems/devices intigration
RANGE PERFORMANCE | |
Range capability (When visibility≥10km, diffuse reflectance≥0.3, humidity≤80% ) | ≥6km (Vehicle targets 2.3m×2.3m)
|
Minimum range | ≤ 50m |
Range accuracy | ≤ ±3m (RMS) |
Multiple targets detection | ~2 |
Range resolution | ≤30m(multi-targets) |
False report | ≤ 2% |
OPTICAL | |
Wavelength | 1550nm±20nm |
Repetition rates(QCW) | ≥1Hz |
Divergence | ≤ 0.3±0.1mrad |
Receiver optics aperture | Φ15mm |
Eye safety | Class 1 |
ELECTRICAL | |
Electrical interface | ENRI-6 |
Communication interface | RS232, 38400bps ，8 digits |
Power supply | DC 12V/1A |
Power consumption | Peak ≤ 5W@12V（450mA） Standby≤ 1W（100mA） |
ENVIRONMENTAL | |
Operating temperature | -40°C ~ + 60°C |
Storing temperature | -50°C ~ + 70°C |
PHYSICAL | |
Weight | ≤150g |
Dimensions (L/W/H) | ≤98mm×55mm×43mm |
Anti-shocking test standard | >100g@6ms |
Anti-vibration test standard | Propeller aircraft vibration environment |
Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact
on the measurement range. The specific technical parameters are subject to the product manual
and are subject to change without notice.Maximum range capabilty 8Km and 15Km ones available
for request.
