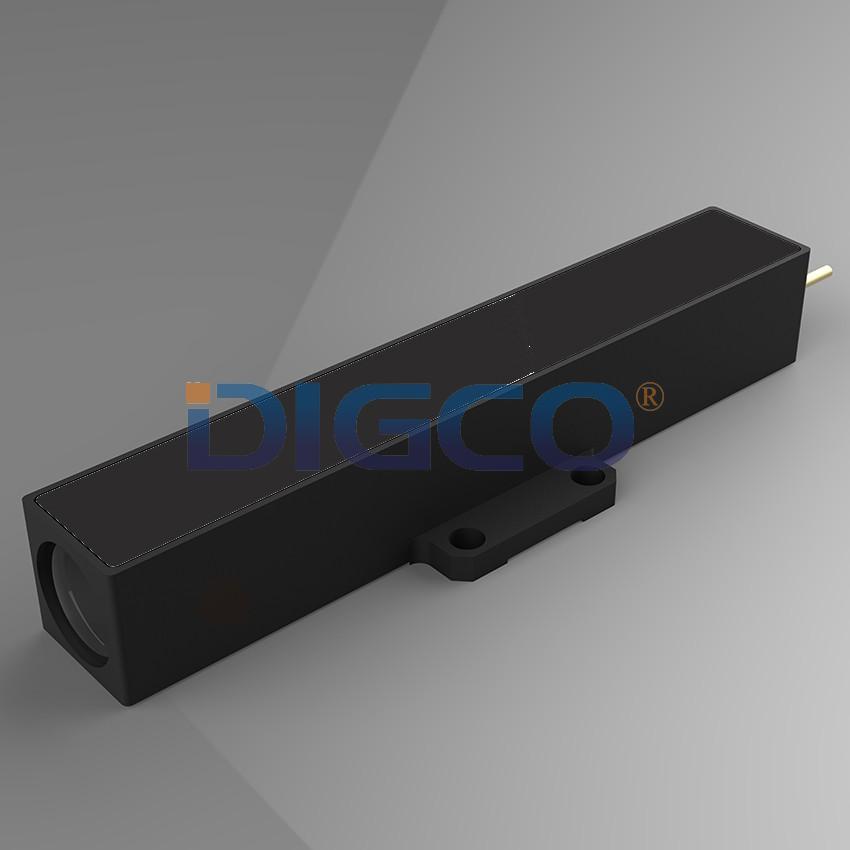

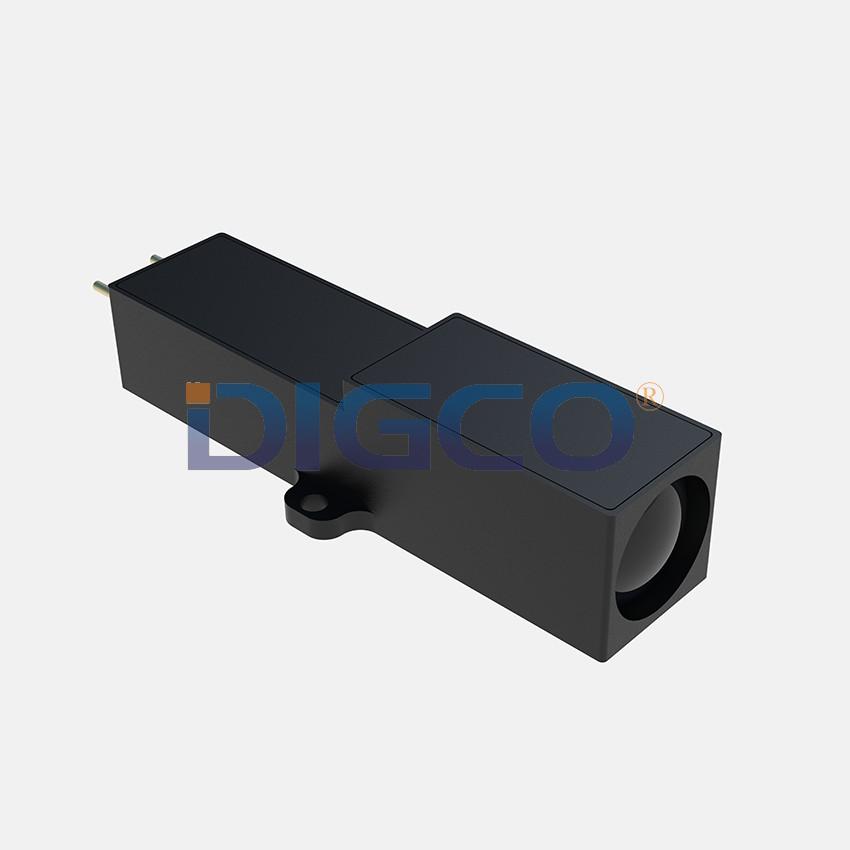

● Optionally with or without telescopes
● Passive Q-Switched laser
● Wavelength:1535nm
● Pulse width (FWHM):4ns
● Repetition frequency(RF):1000,10,5,1Hz
● Pulse energy:40,100,200,300,400,500μJ...
Applications:
◆LIDAR & laser ranging
◆Metrology and instrumentation
◆LIBS
◆Automotive
Output energy ( μJ ) | ≥100 | ≥200 | ≥300 | ≥400 | ≥500 | ≥40 |
Peak power (kW ) | ≥25 | ≥50 | ≥ 70 | ≥ 80 | ≥100 | ≥10 |
Wavelength (nm) | 1535 | |||||
Beam diameter(1/e2)(mm) | 0.2 | 0.2 | 0.2 | 0.3 | 0.35 | |
Beam quality( M2 ) | ≤1.3 | ≤1.5 | ||||
Pulse repetition frequency (Hz) | 1~10 | 1000 | ||||
Pulse width (FWHM) | 3~6 ns | |||||
Pulse Build-up Time(ms) | < 2.5 | <0.4 | ||||
Divergence(mrad) | ≤ 12 | ≤ 12 | ≤ 12 | ≤ 12 | ≤ 15 | |
Operating current ( A ) | 18 | 4 | ||||
Operating Voltage ( V ) | < 2 | |||||
Operating temperature (°C) | -40 ~ +65 | |||||
Storing temperature (°C) | -50 ~ +70 | |||||
Weight ( g ) | ≤ 10 | ≤ 10 | 9 | 11 | 13 | ≤ 10 |

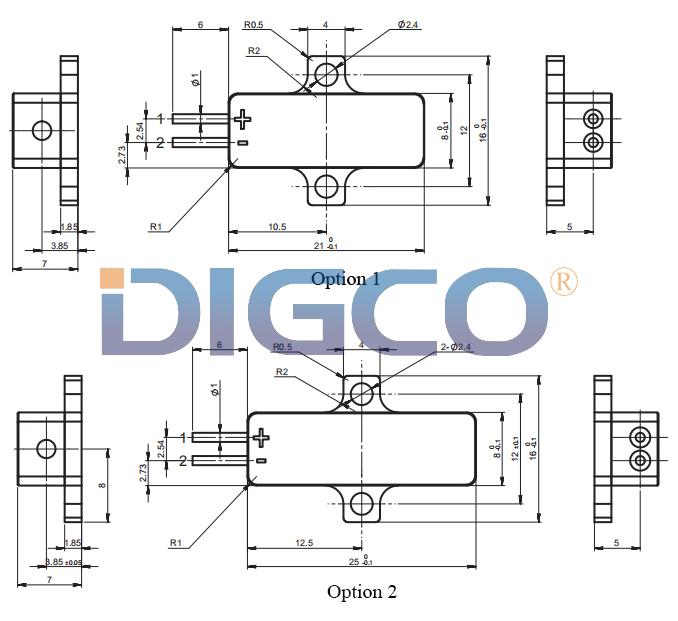

Dimensions (L/W/H, mm) | 21.0 x 16.0 x 7.0 | 25.0 x 18.0 x 7.7 | 25.0 x 18.0 x 7.0 | 28.0 x 16.0 x 7.0 | 34.0 x 16.0 x 7.0 | 29.0 x18.0 x 7.7 |

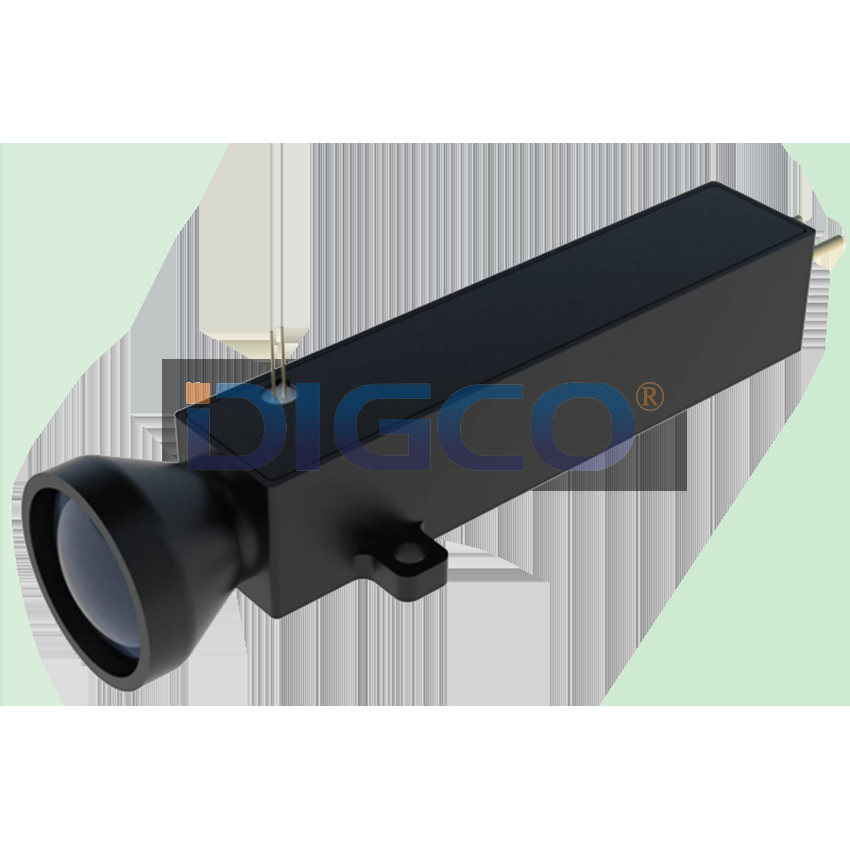

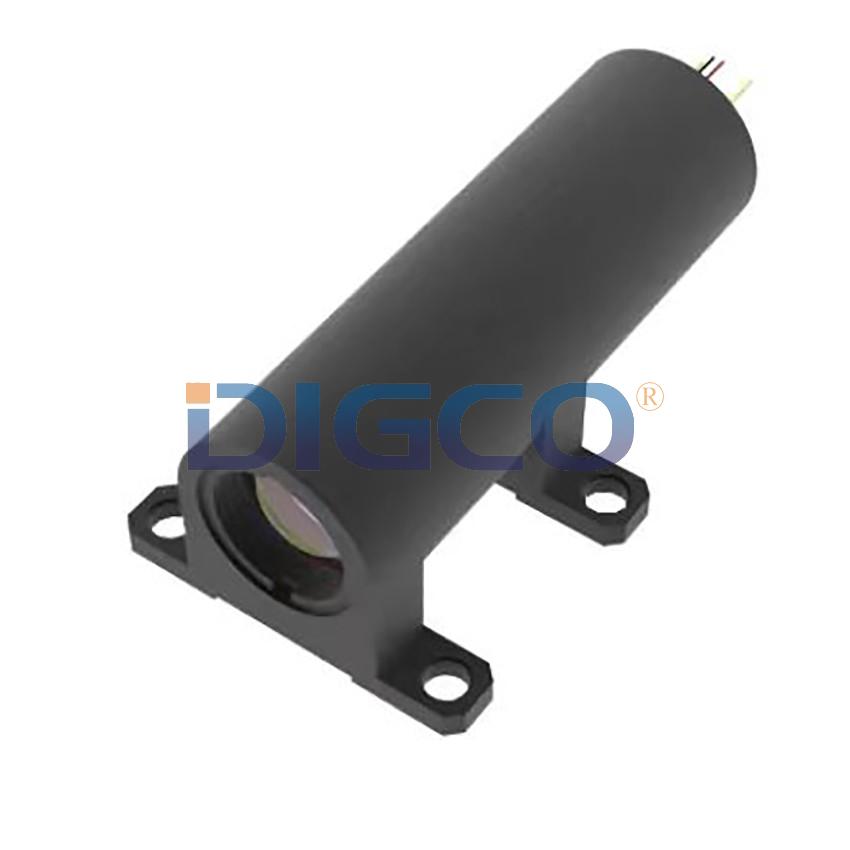

Note:Dimensions are subject to changes based on our upgarding.Er:Glass laser transmitters with or without integrated beam expander of 25X or 30X or 40X to get 0.3mrad-0.5mrad laser are availble for different OEM integration demands.
