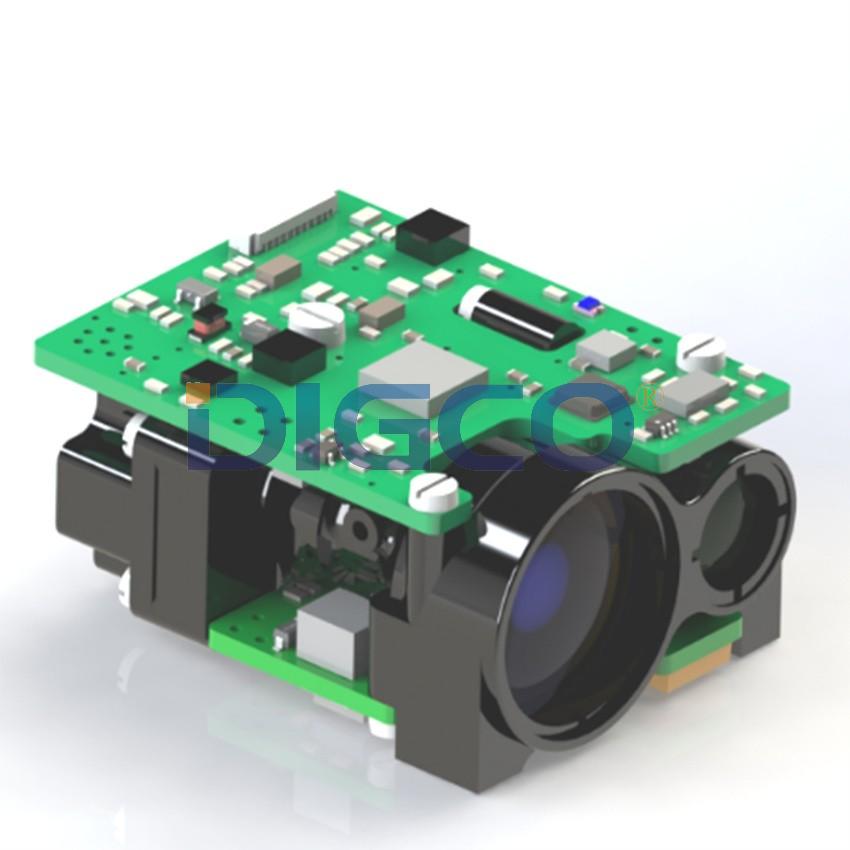

1535LRF06A compact laser rangefinder transceiver

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc…

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Properties

Values

Remarks

Wavelength

1535nm


Range capability

15m-4000m

2.3mx2.3m target

Accuracy

±2m

±1m customizable

Repetition Frequency(RF)

1Hz-10Hz


Accuracy Rate

98%


Divergence

0.5mrad


Receiving Aperture

18mm


Communications Interface

UART

optional TTL

Power supply voltage

4V9V


Operating Power

4W


Standby Power

1W


Dimensions

48mm×36mm×24mm

subject to manual

Weight

55g

subject to manual

Operating Temperature

-40°C~+60°C


Cooling method

natural cooling


Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
