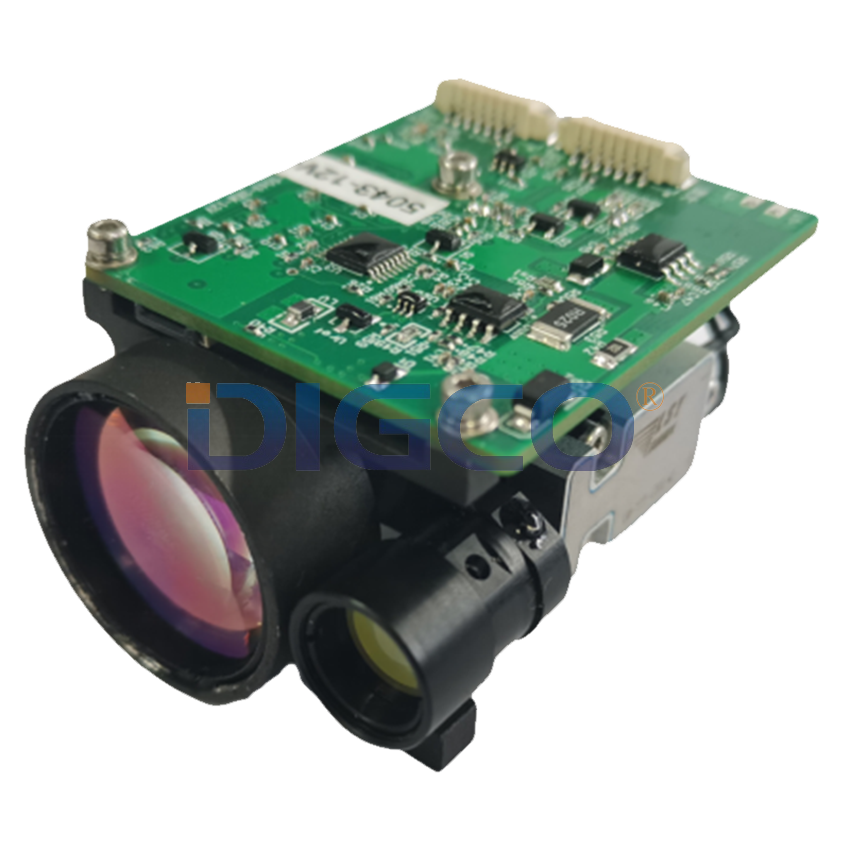

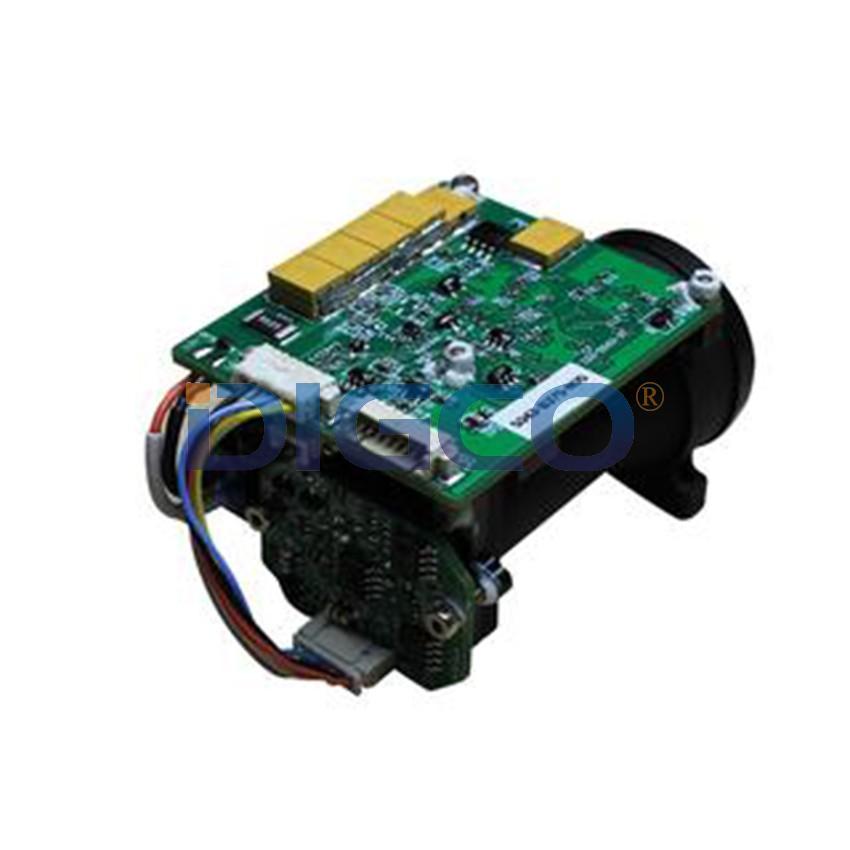

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization
Applications：
●Laser measuring tools in several industries like construction, renovation and real estate etc…
●Industrial production process
●Military
●Forestry
●Sports
●3D modeling
Parameters：
Properties | Values | Remarks |
Wavelength | 1535nm | |
Range capability | 50m～4000m | 2.3mx2.3m target |
Accuracy | ±2m | ±1m customizable |
Repetition Frequency(RF) | 1Hz～10Hz | |
Accuracy Rate | 98% | |
Divergence | 0.6mrad | |
Receiving Aperture | 20mm | |
Communications Interface | RS232 | |
Power supply voltage | 12V | |
Operating Power | 4W | |
Standby Power | 0.2W | |
Dimensions | 56mm×50mm×30mm | subject to manual |
Weight | 70g | subject to manual |
Operating Temperature | -40°C~+55°C | |
Cooling method | natural cooling |
Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
