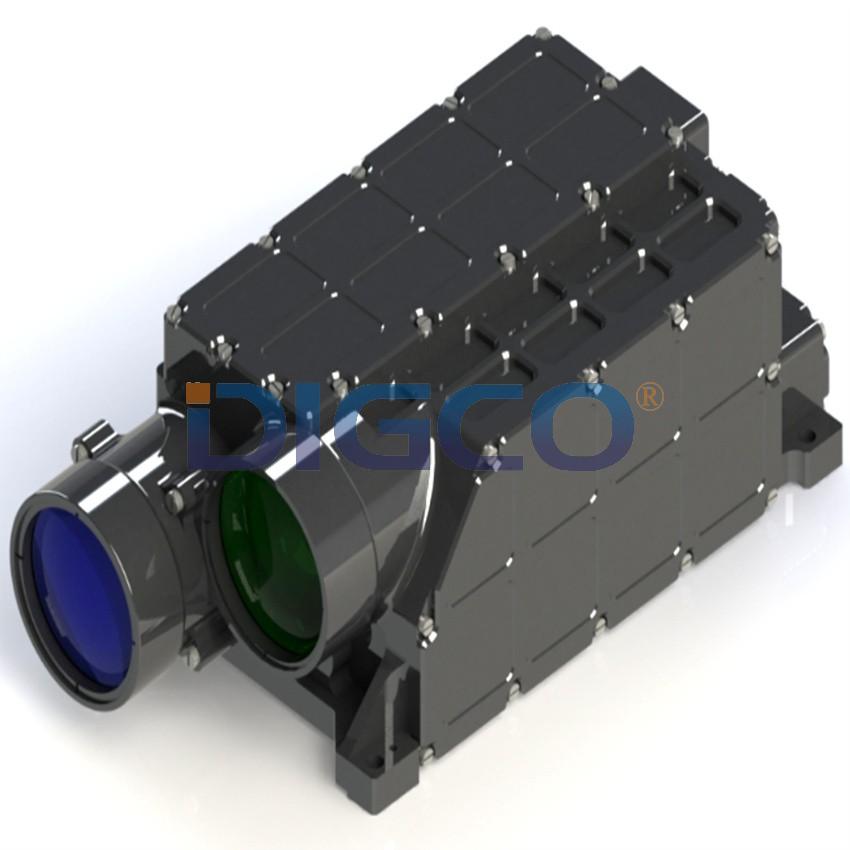

1535LRF03A compact laser rangefinder transceiver

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc…

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Properties

Values

Remarks

Wavelength

1535nm


Range capability

150m-20000m

depending on target

Accuracy

±5m

depending on distance

Repetition Frequency(RF)

1Hz10Hz


Accuracy Rate

98%


Divergence

0.6mrad


Receiving Aperture

52mm


Communications Interface

RS422

optional TTL

Power supply voltage

26V


Operating Power

35W


Standby Power

10W


Dimensions

242mmx112mmx84mm

subject to manual

Weight

1800g

subject to manual

Operating Temperature

-40°C~+55°C


Cooling method

natural cooling


Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
