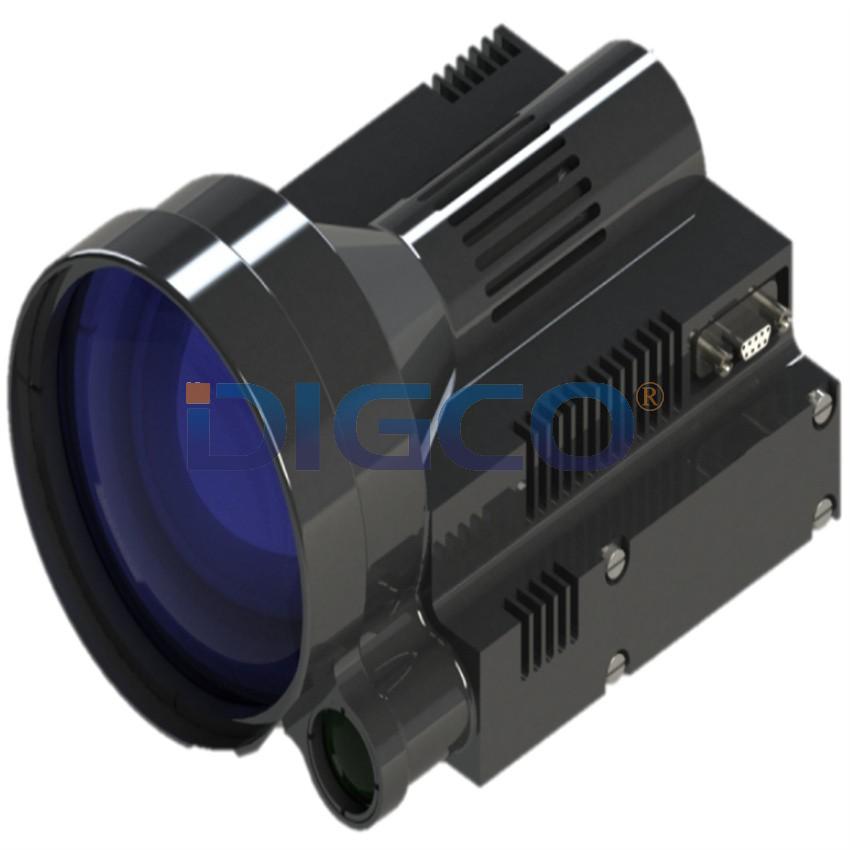

1535LRF01C(1/2/3) compact laser rangefinder sensor

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc…

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Models

1535LRF01C1

1535LRF01C2

1535LRF01C3

Remarks

Wavelength

1535nm

1535nm

1535nm


Range capability

100m~13000m

100m~15000m

100m~17000m

4m×6m target

Accuracy

±3m

±3m

±3m

Depending on distance

Repetition Frequency(RF)

1~5Hz

1~5Hz

1~5Hz


Accuracy

≥99%

≥99%

≥99%


Divergence

0.6mrad

0.6mrad

0.6mrad


Receiving Aperture

65mm

65mm

65mm


Communications Interface

RS422

RS422

RS422


Power supply voltage

28V

28V

28V

Optional 12V

Operating Power

≤4W

≤4.2W

≤5W


Dimensions(mm

120x83x75

120x83x75

120x83x75

 customizable

Weight

≤450g

≤450g

≤450g

customizable

Operating Temperature

-40°C ~+55°C

-40°C ~+55°C

-40°C ~+55°C


Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
