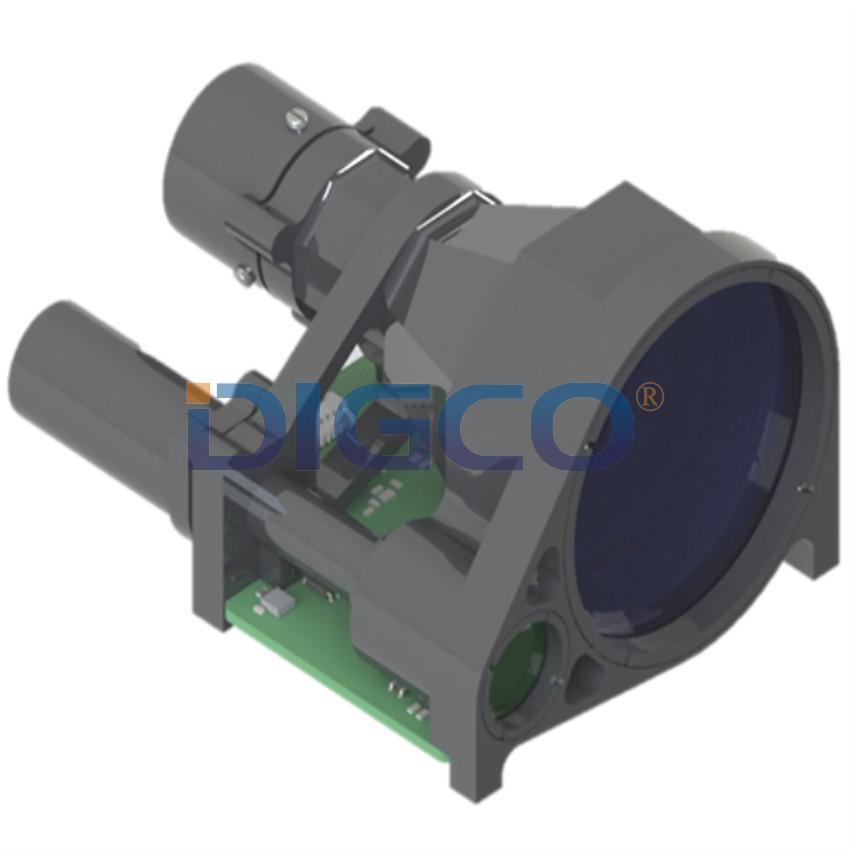

1535LRF01A7 compact laser rangefinder transceiver

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Properties

Values

Remarks

Wavelength

1535nm


Range capability

80m~10000m

2.3m×4.6m target

Accuracy

±2m

depending on distance

Repetition Frequency(RF)

1Hz10Hz


Accuracy Rate

98%


Divergence

0.6mrad


Receiving Aperture

48mm

customizable

Communications Interface

RS422


Power supply voltage

9V~14V

optional 28V

Operating Power

4W


Standby Power

1W


Dimensions

92mm×72mm×55mm

customizable

Weight

190g

customizable

Operating Temperature

-40°C~+55°C


Cooling method

natural cooling


 Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
