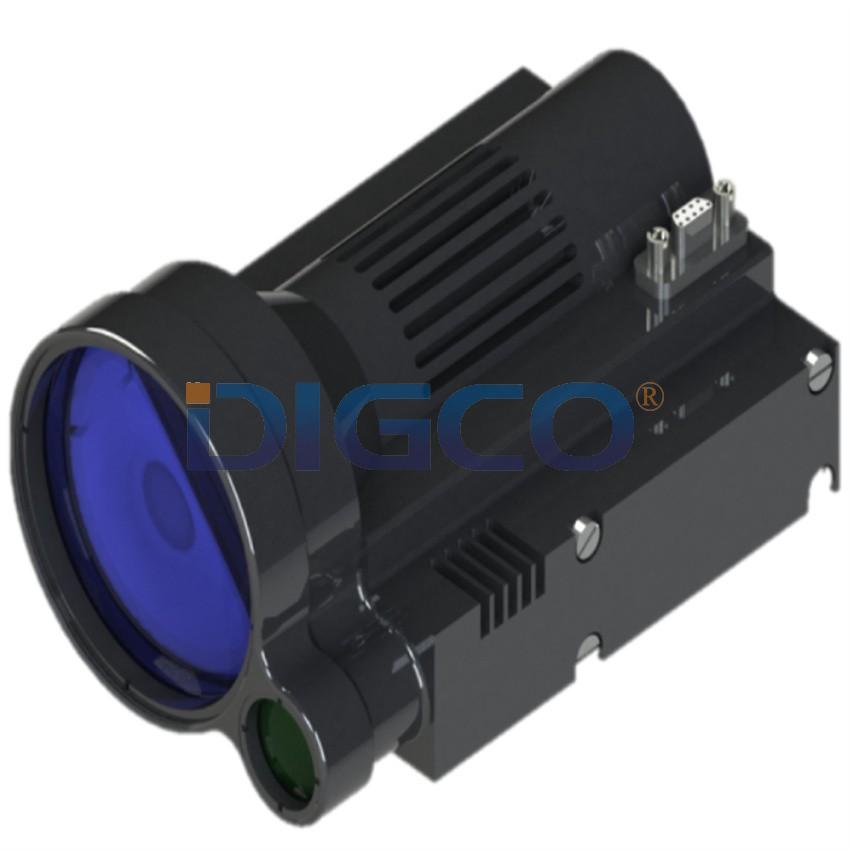

1535LRF01B(1/2/3) compact laser rangefinder module

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc…

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Models

1535LRF01B1

1535LRF01B2

1535LRF01B3

Remarks

Wavelength

1535nm

1535nm

1535nm


Range capability

80m~10000m

80m~13000m

80m~15000m

4m×6m target

Accuracy

±2m

±3m

±3m

Depending on distance

Repetition Frequency(RF)

1~5Hz

1~5Hz

1~5Hz


Accuracy

≥99%

≥99%

≥99%


Divergence

0.6mrad

0.6mrad

0.6mrad


Receiving Aperture

48mm

48mm

48mm


Communications Interface

RS422

RS422

RS422


Power supply voltage

28V

28V

28V


Operating Power

≤4W

≤4W

≤4W


Dimensions(mm

108x69x56

108x69x56

108x69x56

customizable

Weight

≤300g

≤300g

≤300g

customizable

Operating Temperature

-40°C~+55°C

-40°C~+55°C

-40°C~+55°C


Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
