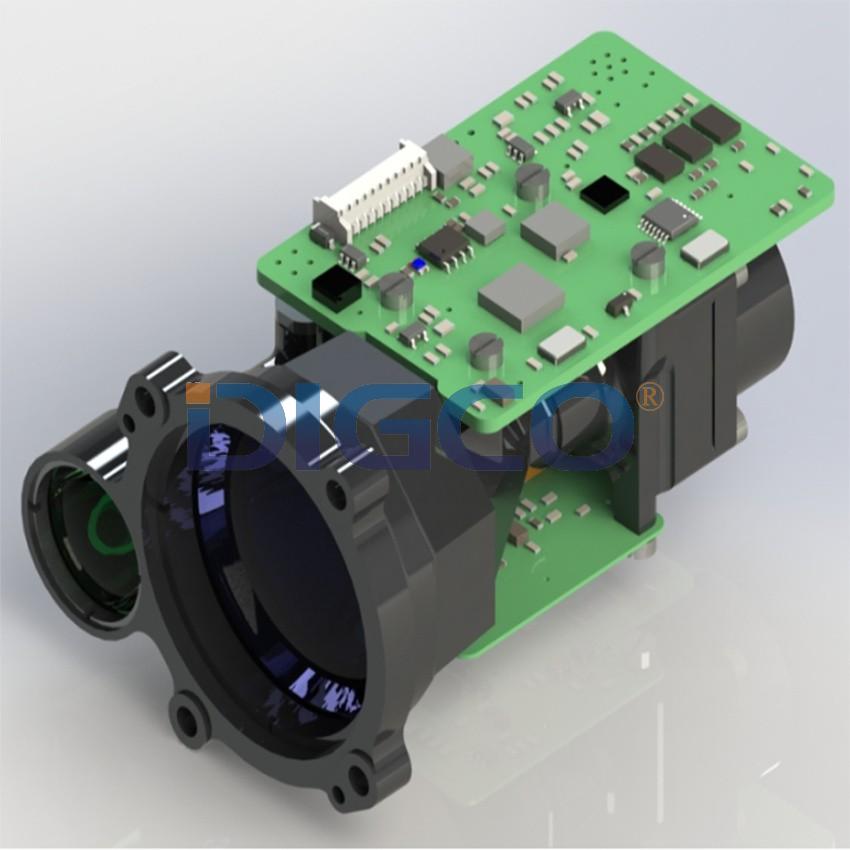

1535LRF01A5C compact laser rangefinder transceiver

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Properties

Values

Remarks

Wavelength

1535nm


Range capability

20m7000m

2.3mx2.3m target

Accuracy

±1m


Repetition Frequency(RF)

1Hz10Hz


Accuracy Rate

≥98%


Divergence

0.4mrad


Receiving Aperture

33mm


Communications Interface

RS422


Power supply voltage

12V


Operating Power

4W


Standby Power

1W


Dimensions

79mm×59mm×46mm

subject to manual

Weight

130g

subject to manual

Operating Temperature

-40°C~+55°C


Cooling method

natural cooling


Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are

subject to change without notice.
