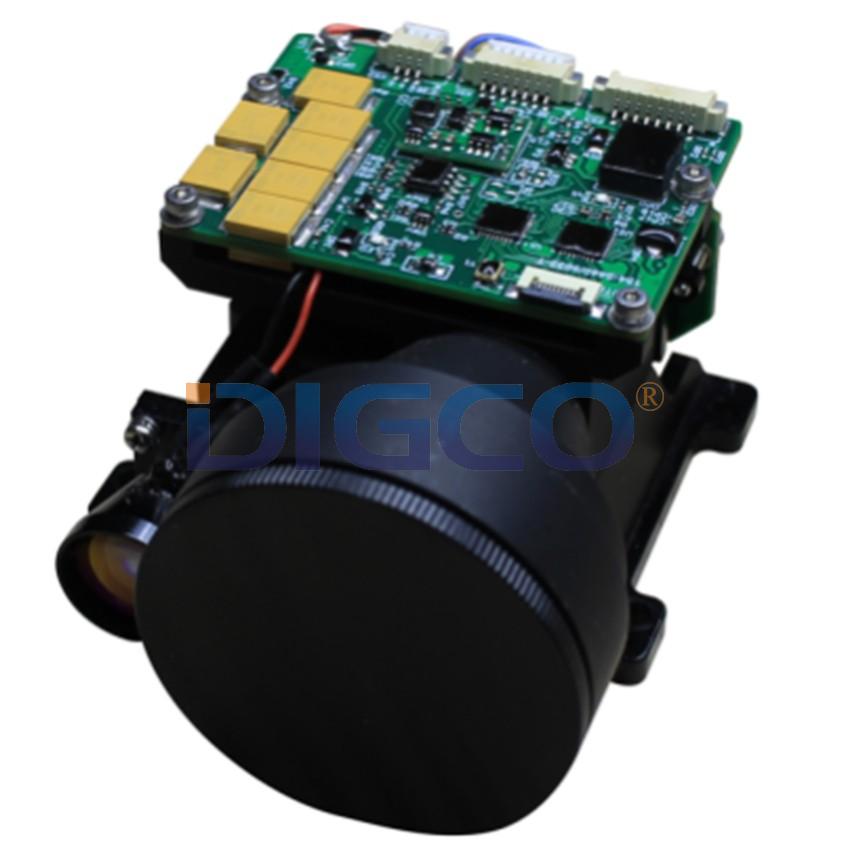

1535LRF01A6 compact laser rangefinder transceiver

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Properties

Values

Remarks

Wavelength

1535nm


Range capability

80m~8500m

2.3mx2.3m target

Accuracy

±2m

±1m customizable

Repetition Frequency(RF)

1Hz10Hz


Accuracy Rate

98%


Divergence

0.5mrad


Receiving Aperture

42mm

customizable

Communications Interface

RS422


Power supply voltage

9V~14V


Operating Power

3W


Standby Power

1W


Dimensions

88mm×65mm×46mm

customizable

Weight

145g

customizable

Operating Temperature

-40°C~+55°C


Cooling method

Natural cooling


 Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
