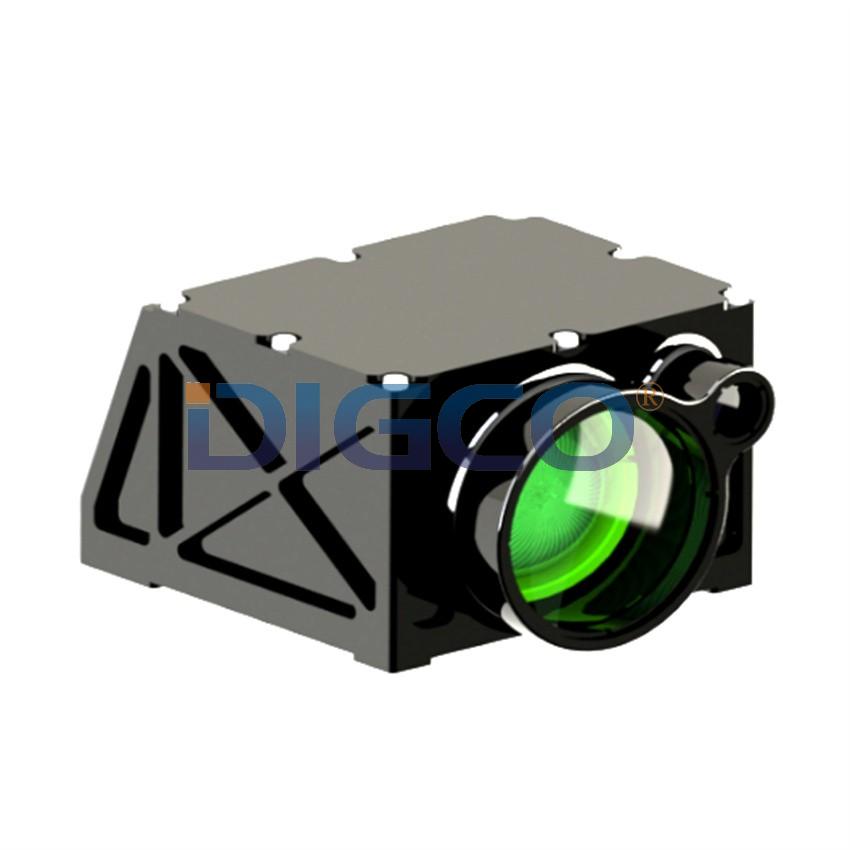

1535LRF01A9 compact laser rangefinder

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Properties

Values

Remarks

Wavelength

1535nm


Range capability

50m-6000m

2.3mx2.3mtarget

Accuracy

±2m

±1m customizable

Repetition Frequency(RF)

1Hz10Hz


Accuracy Rate

98%


Divergence

1.0mrad


Receiving Aperture

41mm


Communications Interface

RS422


Power supply voltage

12±2V


Operating Power

4W


Dimensions

91mm×75mm×54mm

subject to manual

Weight

300g

subject to manual

Operating Temperature

-40°C~+55°C


Cooling method

natural cooling


 Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
