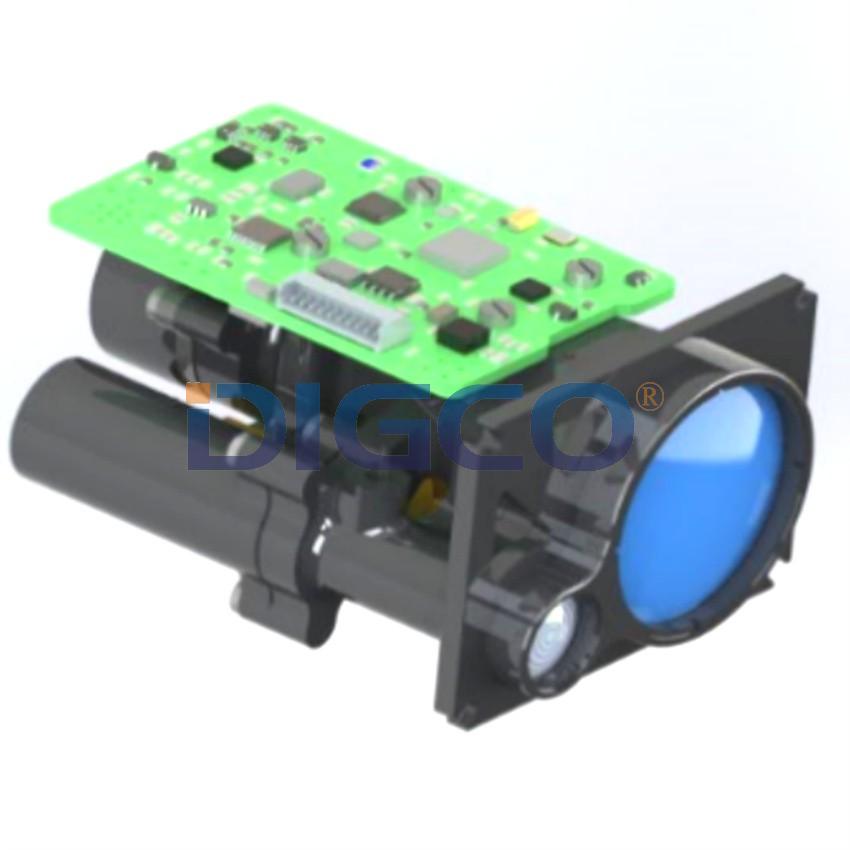

1535LRF01A6A compact laser rangefinder module

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc…

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Properties

Values

Remarks

Wavelength

1535nm


Range capability

20m-7000m

2.3mx2.3m target

Accuracy

±1m


Repetition Frequency(RF)

1Hz~10Hz


Accuracy Rate

98%


Divergence

0.4mrad


Receiving Aperture

30mm


Communications Interface

RS422


Power supply voltage

12V


Operating Power

4W


Standby Power

1W


Dimensions

77mm×57mm×43mm

subject to manual

Weight

130g

subject to manual

Operating Temperature

-40°C~+55°C


Cooling method

natural cooling


 Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
