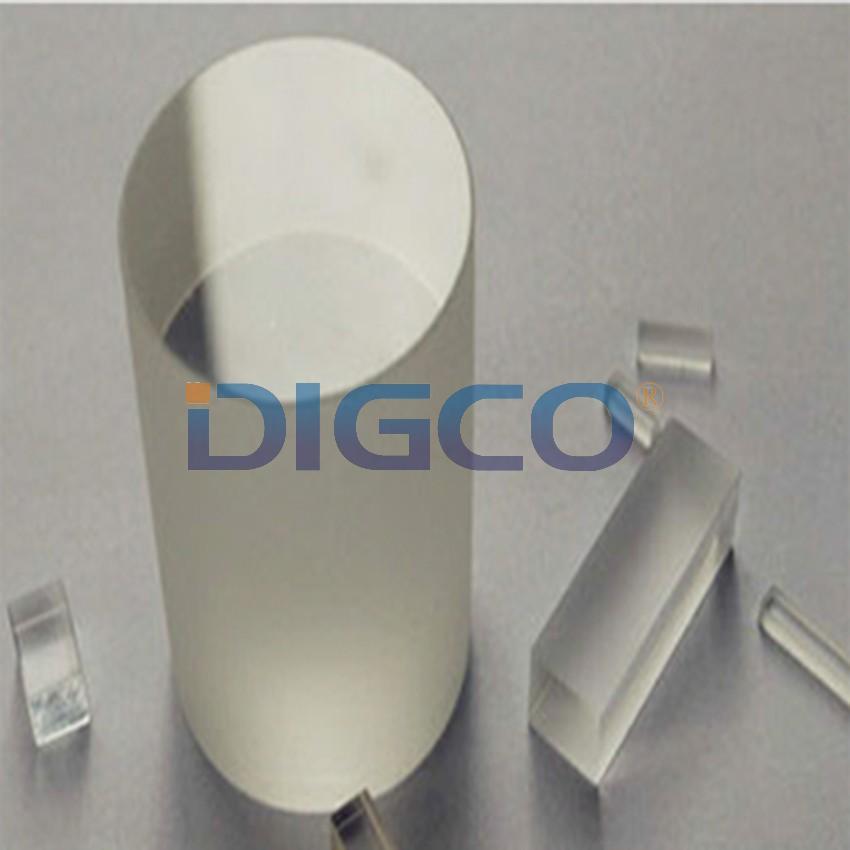

Undoped YAG

●non-birefringent
●High bulk damage threshold
●high thermal conductivity
●High index of refraction, facilitating low aberration lens design
●Low stress and high optical quality

EMAIL

Undoped YAG is a substrate and window crystal that can be used for both UV and IR optic. It is particularly useful for high temperature and high energy applications. The mechanical stability of YAG is similar to Sapphire, but YAG is not birefringent and is available with high optical homogeneity.

Chemical Formula

Y3Al5O12

Growth Direction of Crystal

[111]

Extinction Ratio

≥30dB

Wavefront Distortion

λ/8 per inch @632.8nm

Dimensions

Diameter:2-50mm, length:3~200mm

Tolerances

Diameter±0.02mm, Length±0.2mm

Barrel Surface

Fine ground, Polished, Grooved

Parallelism

≤10″

Perpendicularity

≤5

Surface Flatness

λ/10 per inch @632.8nm

Surface Quality

10-5(MIL-PRF-13830B)

Chamfer

0.1mm@45°

Clear Aperture

>95%

Anti-Reflection Coating

R<0.15%@1064nm

High-Reflection Coating

Standard HR coating with R>99.8%@1064nm

Damage threshold

>750MW/cm²

Note: Parameters above can be customized as required.
