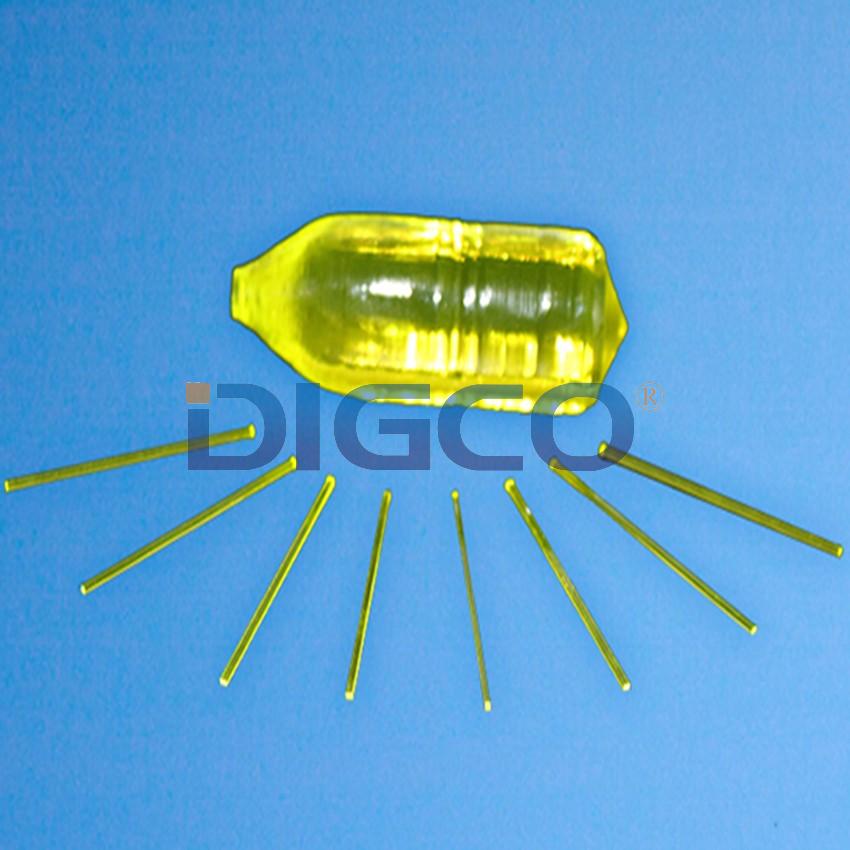

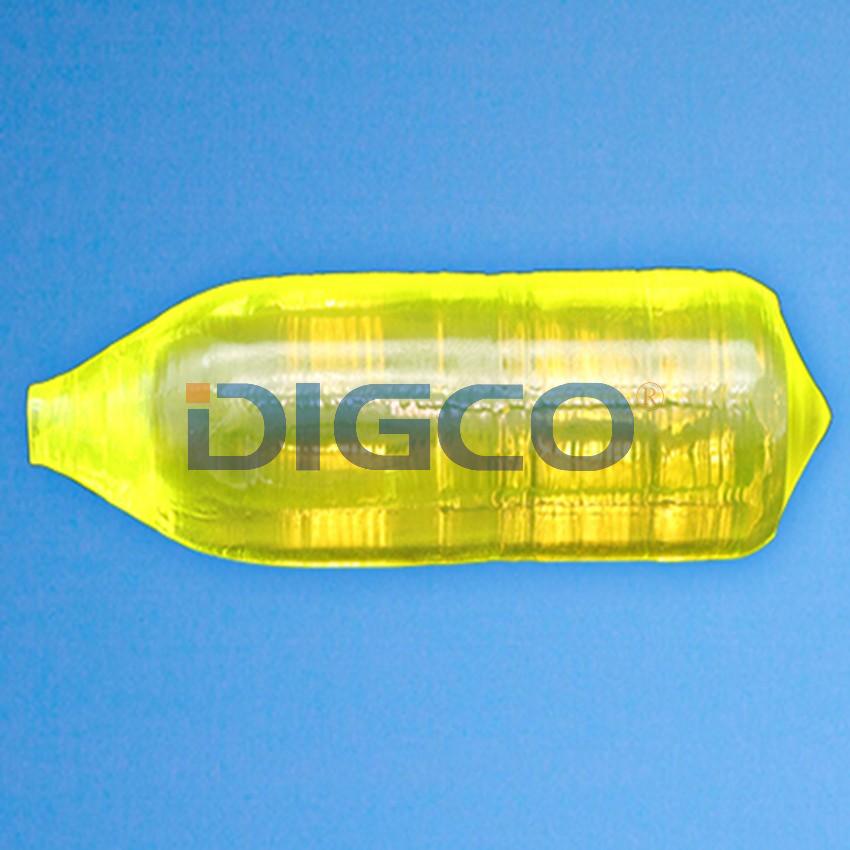

Ce:LUAG

Features:
●High-density
●The decay time is short
●Non hygroscopicity
●Good mechanical and chemical stability
Application:
●Computed tomography (CT)
●Positron emission computed tomography (PET)
●Single photon emission computed tomography (SPECT)
●Particle accelerator
●Laser and LED lighting

EMAIL

Ce: LUAG is an excellent scintillator with fast attenuation (80ns), high light yield and 510nm emission peak, which is equivalent to the sensitivity and good mechanochemical stability of industrial silicon CCD detector. The crystal can be widely used in imaging screen, LED lighting and laser lighting, medical imaging and other fields.

Chemical formula

Ce:Lu3Al5O12

Emission peak

510nm

Lattice constant

a=11.914Å

Density

6.73g/cm³

Hardness

8.5 Mohs

Melting point

1970℃

reflection coefficient

1.84

Expansion coefficient

8.8*10-6/℃

Decay time

80ns

Energy resolution

<8%

Orientation accuracy

<0.5°

Diameter tolerance

±0.05mm

Parallelism

<10″

Lateral lobe

<15′

Chamfering

<0.1*45°

Maximum size

MaxФ60mm

Note: Parameters above can be customized as required.
