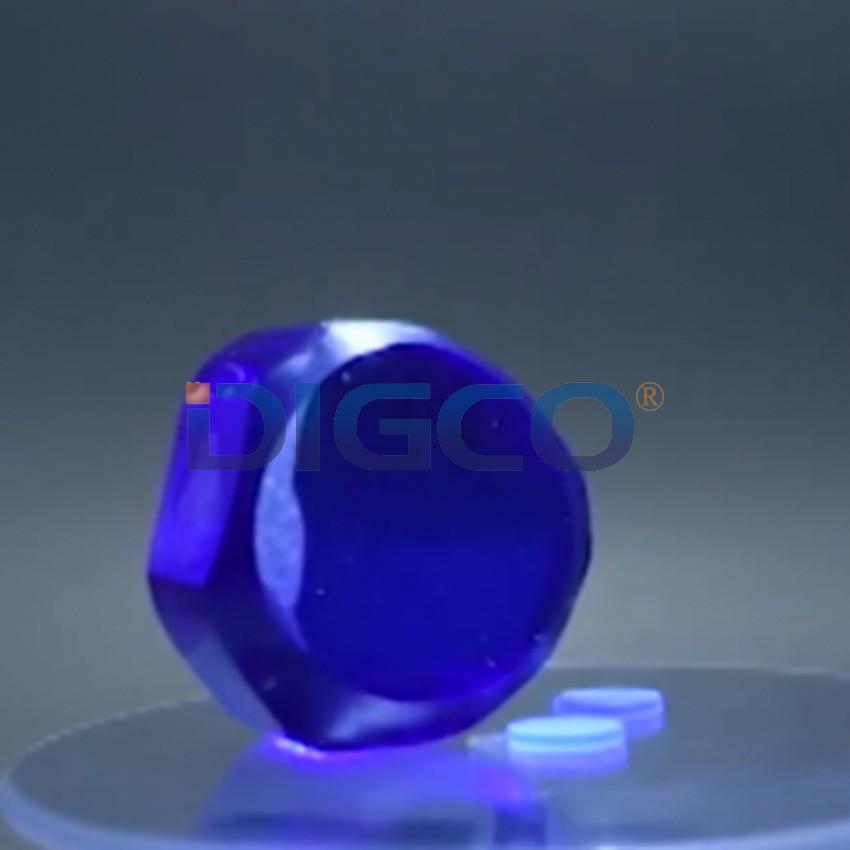

Passivelly q-switching saturable absorber for solid state laser transmitters operating at eye-safe wavelength of 1.5 μm
Chemical Formula,Crystal:Activator | Co：MgAl2O4：Co2＋ |
Activator Concentration | Co2＋:30-96% |
Growth Direction of Crystal | [111] |
Wavefront Distortion | < λ/4 @632nm |
Tolerances | Diameter ±0.01mm, Thickness ±01mm |
Barrel Surface | Fine ground, Polished |
Parallelism | ≤10″ |
Perpendicularity | ≤15′ |
Surface Flatness | λ/8 @632nm |
Surface Quality | 10-5(MIL-PRF-13830B) |
Chamfer | 0.2mm@45° |
Clear Aperture | >90% |
Coating | AR/AR@1540nm, R<0.20% |
Note: Parameters above can be customized as required. | |
