● Long lifetime
● High damage threshold
● High stability
● High reliability

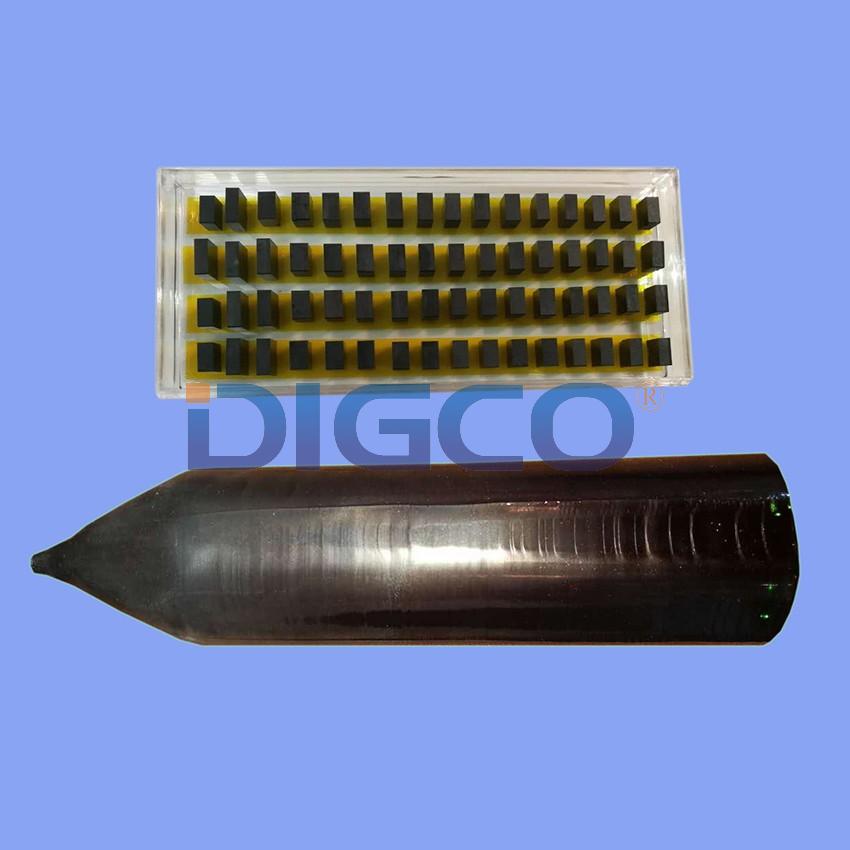

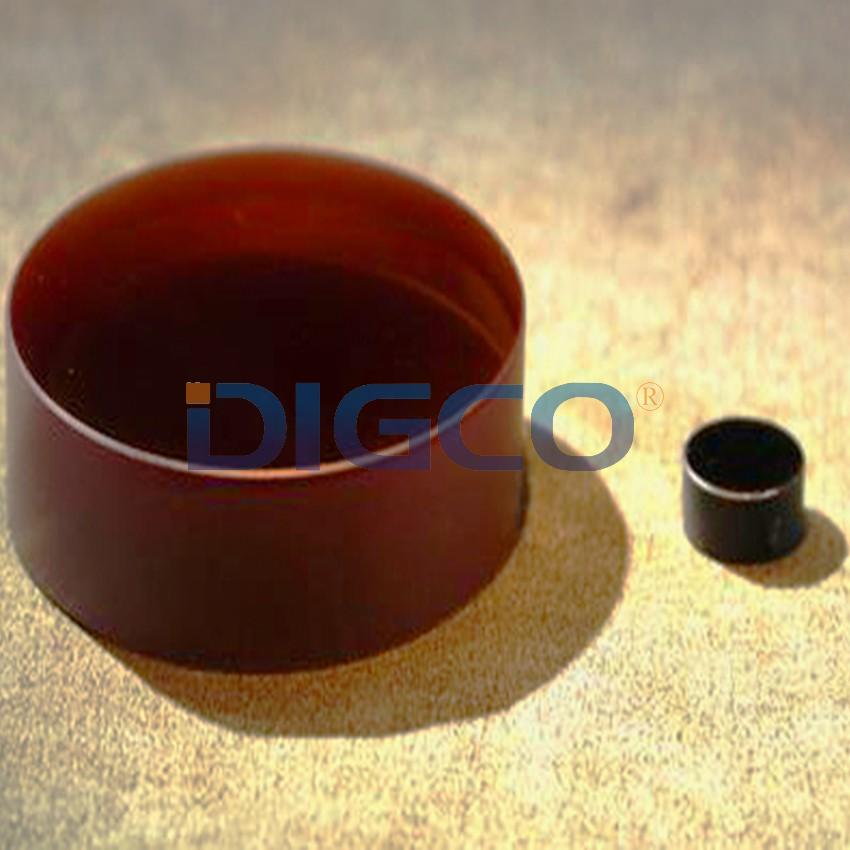

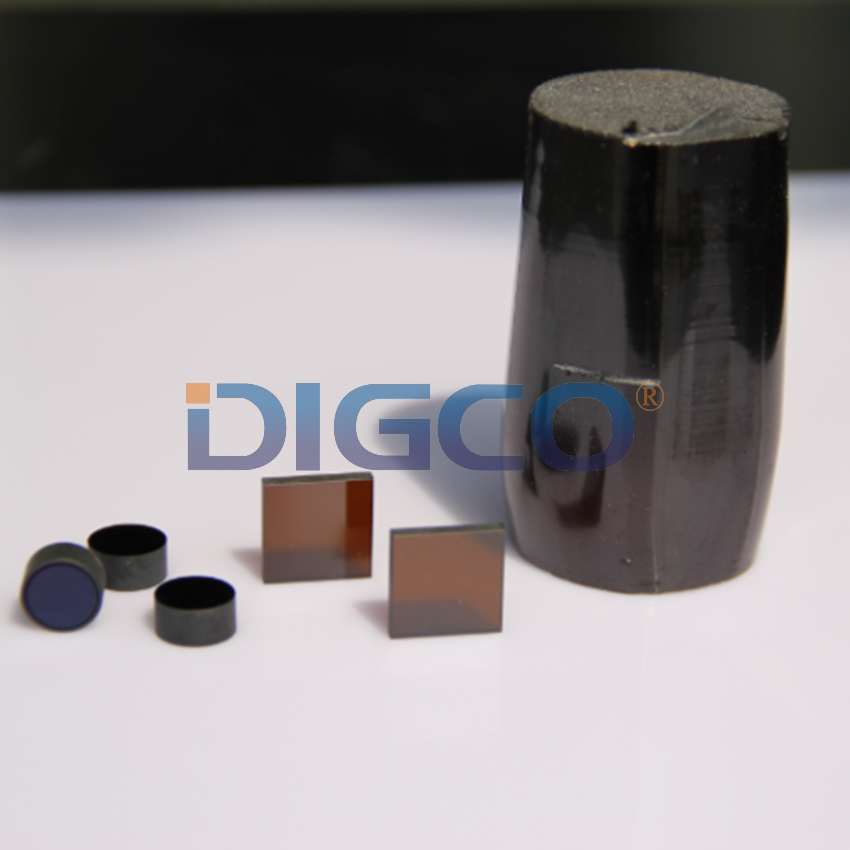

Cr4+: YAG is an excellent saturable absorption material. It has strong absorption at the wavelength from 0.8～1.2μm and has the advantages of high melting point, damage resistance, and good thermal conductivity. It is often used as passive Q-switch for 0.8～1.2μm lasers.
Parameters: | |
Host | Yttrium Aluminium Garnet (Y3Al5O12) |
Dopant | Cr4+ |
Growth Direction of Crystal | [111] or [100] |
Initial Absorption Coefficient | 0.5～0.6cm-1@1064nm |
Transmission | 5%～95%@1064nm |
Dimensions | Diameter: 3~12mm Section: 2x2~30x30mm |
Tolerance | Diameter: +0,-0.02mm, Thickness: +0.2,-0mm |
Barrel Surface | Fine ground |
Parallelism | ≤10″ |
Surface Flatness | λ/10 per inch @632.8nm |
Surface Quality | 10-5(MIL-PRF-13830B) |
Anti-Reflection Coating | R<0.15%@1064nm |
Damage threshold | >750MW/cm² |
Note: Parameters above can be customized as required. | |
