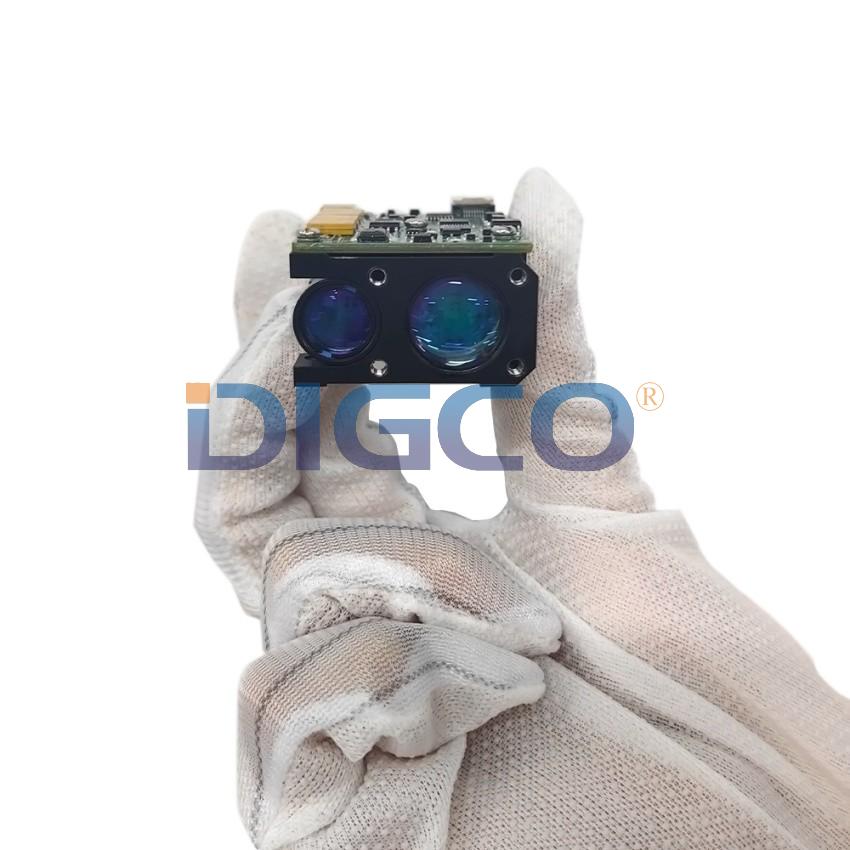

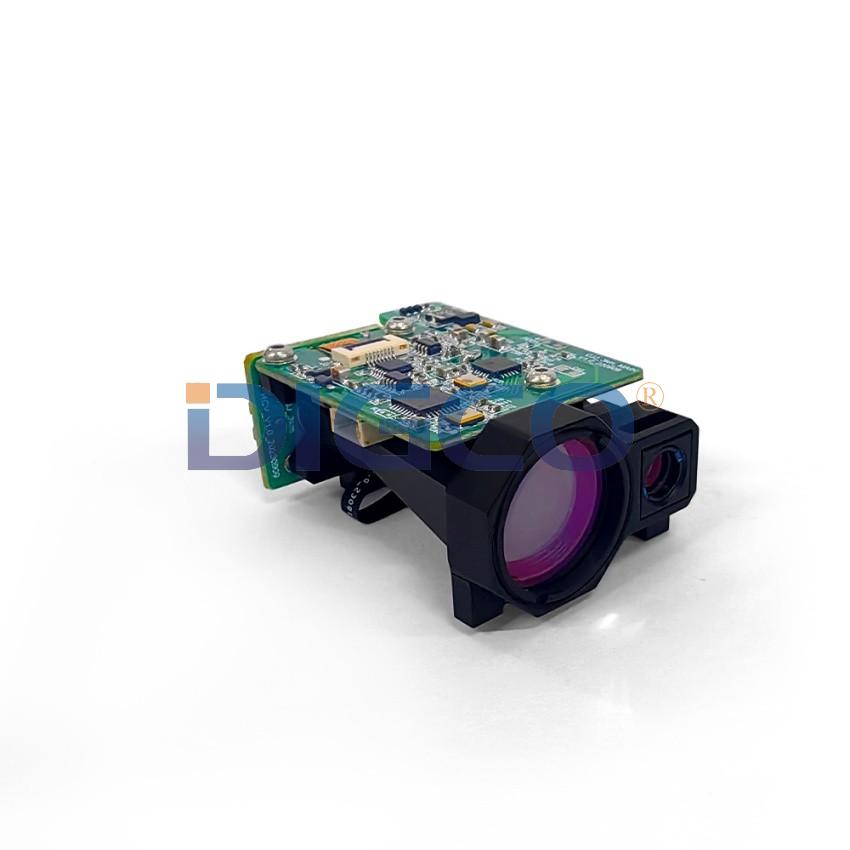

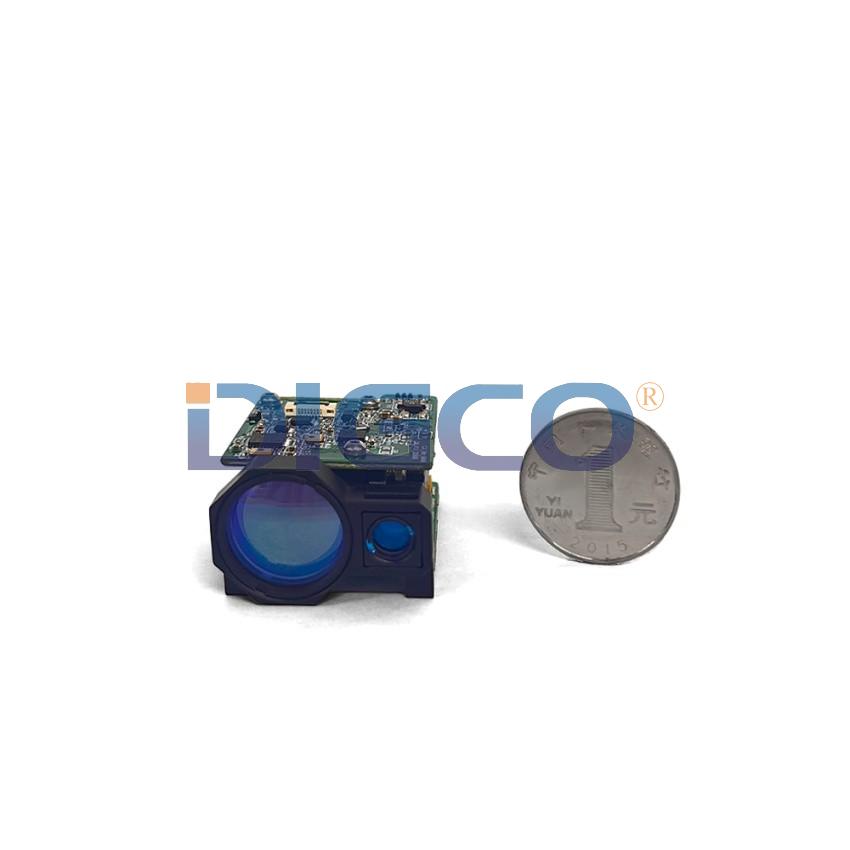

• Compact and lightweight
• Beam divergence ≦0.5 mrad
• Low power consumption
• Measurement rates up to 10 Hz
• Laser 1.54 µm wavelength
• Eye safe Class 1M
• Easy for OEM systems/devices intigration
Applications：
• Counter drone & UAV activities • Observation and surveillance
• Aerial collision prevention • Border and port control
• Off shore rescue • Naval systems
• Drone & UAV gimbals • Vehicle mounted systems
RANGE PERFORMANCE | |
Range capability (for targets sized 2.3m X 2.3m when visibility ≥5km,diffuse reflectance≥0.3, humidity≤80% ) | ≥3km |
Minimum range | ≤ 20m |
Range accuracy | ≤ ±1m (RMS) |
Multiple targets detection | ~3 |
Range resolution | ≤30m |
False report | ≤ 2% |
OPTICAL | |
Wavelength | 1535nm±5nm |
Repetition rates(QCW) | 1~10Hz adjustable |
Divergence | ≤ 0.5mrad |
Eye safety | Class 1 |
ELECTRICAL | |
Electrical interface | Connector A1002WR-S-8P |
Communication interface | RS422, 115200bps |
Power supply | DC 6V~ 36V |
Power consumption | Average ≤ 1.5W(1Hz), Peak ≤ 5W,Standby≤0.3W |
ENVIRONMENTAL | |
Operating temperature | -40°C ~ + 65°C |
Storing temperature | -55°C ~ + 70°C |
PHYSICAL | |
Weight | ≤ 35g |
Dimensions (L/W/H) | ≤ 48mmⅹ21mmⅹ31mm |
Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range.
The specific technical parameters are subject to the product manual and are subject to change without notice.
