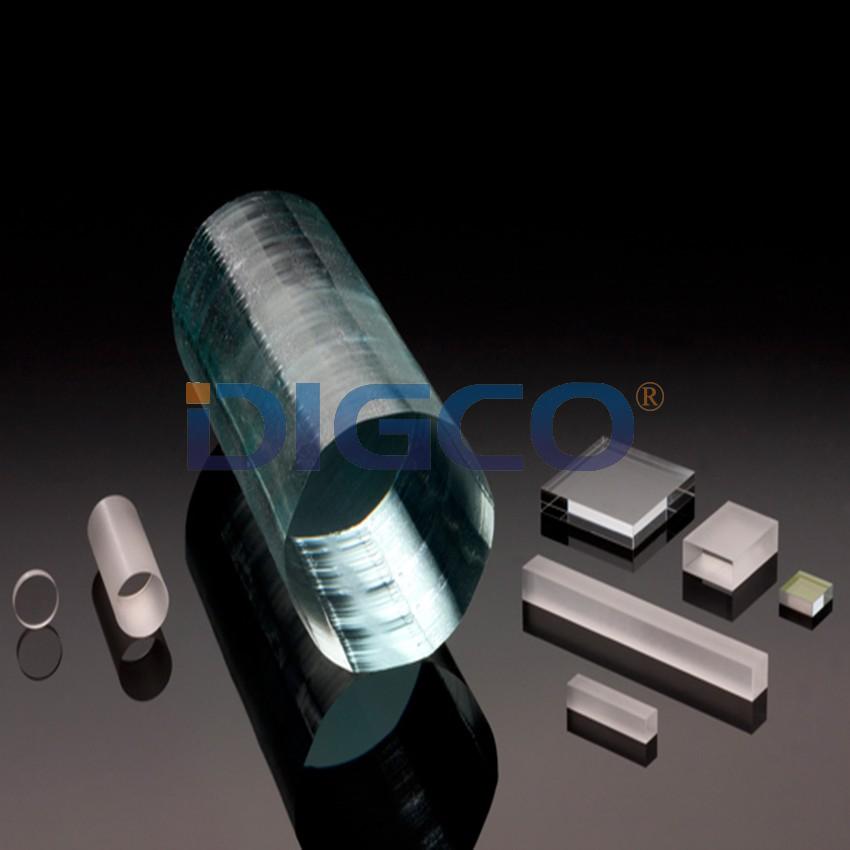

Yb: YAG

● High slope efficiency
● Good thermal conductivity and high mechanical strength
● Non-excited state absorption or up-conversion
● Lower thermal loading than Nd: YAG per unit pumping power

EMAIL

Yb: YAG is one of the most promising materials for solid state lasers. It is more suitable for diode-pumped lasers than the traditional Nd-doped ones. Compared with Nd:YAG crystal, Yb:YAG crystal has a much larger absorption band width to reduce thermal management requirements for diode lasers, a longer upper laser level lifetime, three to four times lower thermal loading per unit pumping power.

Chemical Formula,Crystal:Activator

Y3Al5O12:Yb3+

Activator Concentration

Yb3+:0.5~2.5at% , ±0.1%

Growth Direction of Crystal

[111] or [100]

Wavefront Distortion

λ/8 per inch @632.8nm

Extinction Ratio

≥30dB

Dimensions

Diameter2~50mm length5~180mm

Tolerances

Diameter±0.02mm, Length±0.2mm

Barrel Surface

Fine ground, Polished or Grooved

Parallelism

≤10″

Perpendicularity

≤5′

Surface Flatness

λ/10 per inch @632.8nm

Surface Quality

10-5(MIL-PRF-13830B)

Chamfer

0.1mm@45°

Clear Aperture

>95%

Anti-Reflection Coating

R<0.20%@1030nm per surface

Damage Threshold

>750MW/cm²

Note: Parameters above can be customized as required.
