Ti:Sapphire(Ti:Al2O3) crystal Ti:Sapphire(Ti:Al2O3) crystal

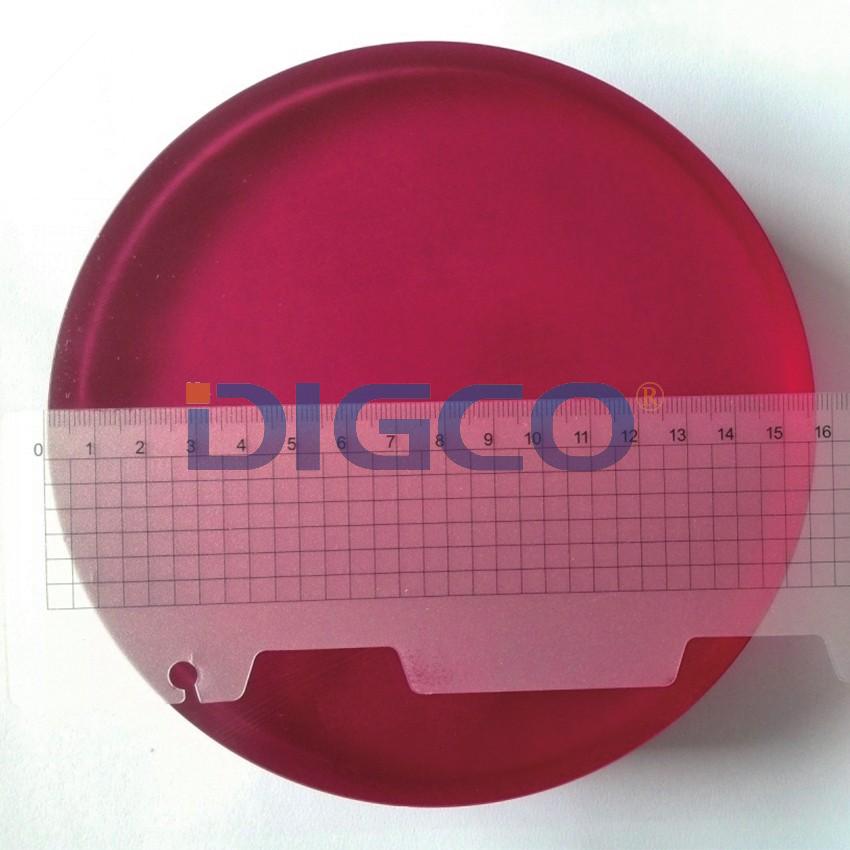

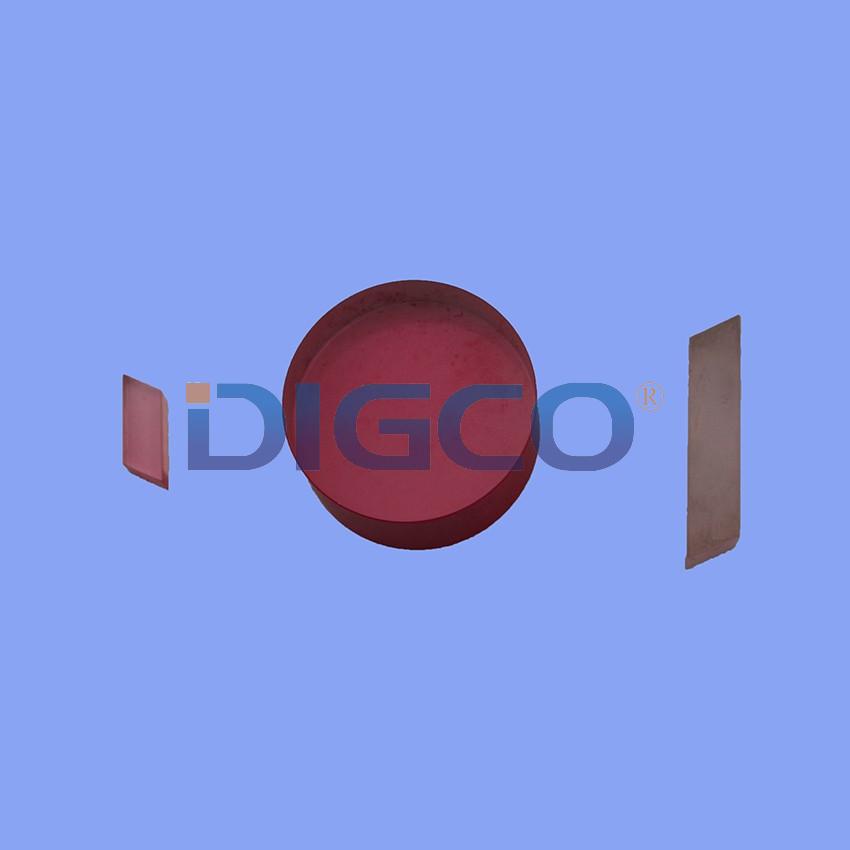

Ti:Sapphire(Ti:Al2O3) crystal

Features:
●.Large gain-bandwidth
●Short excited-state lifetime (3.2 μs)
●.Excellent thermal conductivity
●.High saturation power
●.High damage threshold
Application:
●Two-Photon Microscopy
●Multi-Channel Fluorescence Images of 3D Volumes
●Photostimulation and Uncaging
●Label-Free Imaging via Multiphoton Autofluorescence and SHG

EMAIL

Titanium doped sapphire(Ti3+:Al2O3) is widely used for tunable lasers and femtosecond solid-state lasers.It was first used as a gain medium in 1986, and till now, it is still the best material for ultrashort pulse generation. The substrate-sapphire has good physical and optical properties. High thermal conductivity and good alleviating thermal effects provide the usability for high power laser.

Chemical Formula,Crystal:Activator

Ti：Al2O3:Ti3＋

Ti2O3 concentration

As required

Orientation of Crystal

optical axis C normal to rod axis,homogeneous C-axis direction along

End configuration

Brewster cut or rectangular cut as required

Tolerances

Diameter ±0.01mm, Thickness ±01mm

Barrel Surface

Fine ground, Polished

Parallelism

10 arcsec

Surface Flatness

λ/10

Surface Quality

10/5 scratch/dig or better

Coating

As required

Note: Parameters above can be customized as required.
