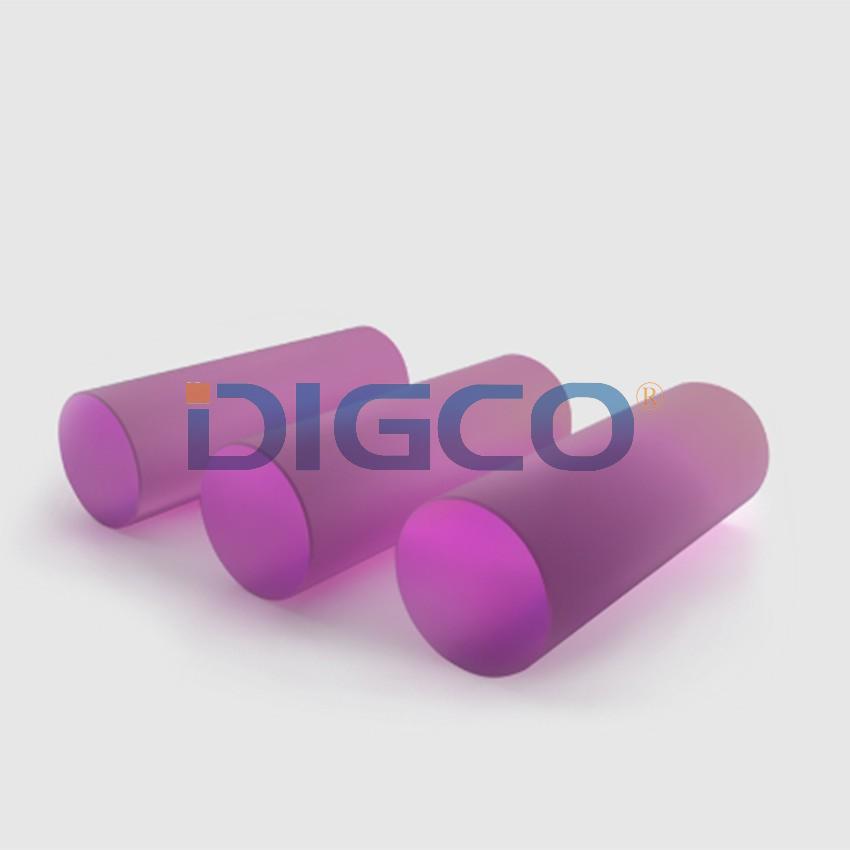

Nd:YLF crystal

※Long lifetime of 4F3/2 neodymium energy level
※Considerably softer and more brittle than is Nd:YAG
※Nd:YLF (a-cut) crystals that are used inside a laser optical resonator are self polarizing
※Custom crystals available upon request

EMAIL


Neodymium Doped Yttrium Lithium FluorideNd3+:YLF crystal is characterized by a long lifetime of 4F3/2 neodymium energy level. Compared to Nd:YAG, the lower thermal conductivity and a weak negative dn/dT lead to lower thermal distortions and allow to achieve a better output beam quality. Another distinctive feature is the high UV transparency, which is favorable for pumping with xenon flash lamps.



Features

Long lifetime of 4F3/2 neodymium energy level

Considerably softer and more brittle than is Nd:YAG

Nd:YLF (a-cut) crystals that are used inside a laser optical resonator are self polarizing

Custom crystals available upon request



Applications

CW and pulsed operation at 1047nm and 1053 nm

Materials processing, welding, cutting

Parameters:

Host

LiYF4YLF

Dopant

Nd3+

Concentration

~1.0at%

Growth Direction of Crystal

[100] or [001] 5

Wavefront Distortion

0.25λ/25mm@632.8nm

Wavelength

1047nm,1053nm

Dimensions

Diameter 3~8mm,length 10~120mm

Tolerances

Diameter+0.00/-0.05mm,length±0.5mm

Barrel Surface

Fine ground, Polished or Grooved

Parallelism

10

Perpendicularity

5'

Surface Flatness

λ/10@632.8nm

Surface Quality

10-5(MIL-O-13830B)

Chamfer

0.15±0.05mm

Emission cross-section

1.8 × 10-19 (E||C) cm2@1047 nm

1.2 × 10-19 (E⊥C) cm2@1053 nm

Anti-Reflection Coating

R0.25%@1047/1053nm

Fluorescence  Lifetime

485μs@1.0at%Nd3+

Damage Threshold

500MW/cm2

Note: Parameters above can be customized as required.
