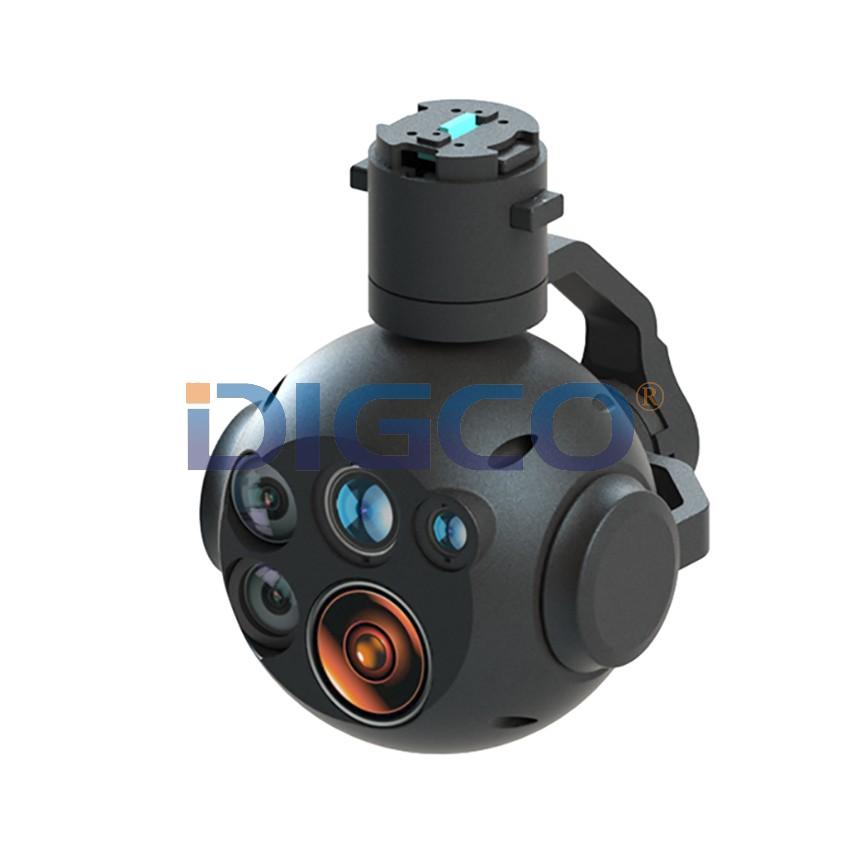

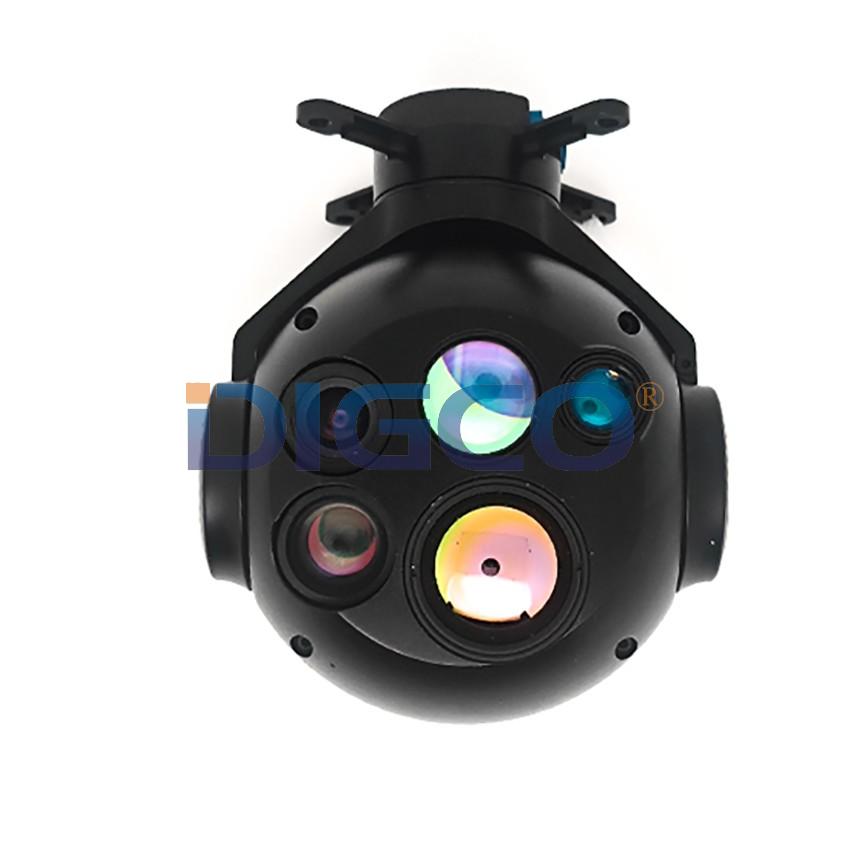

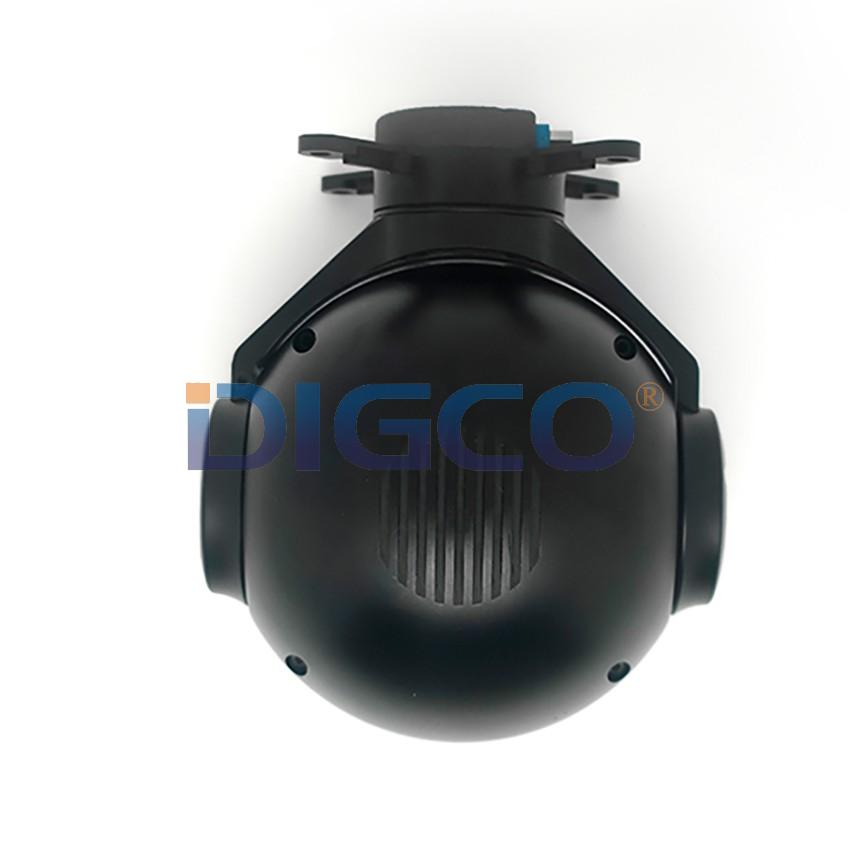

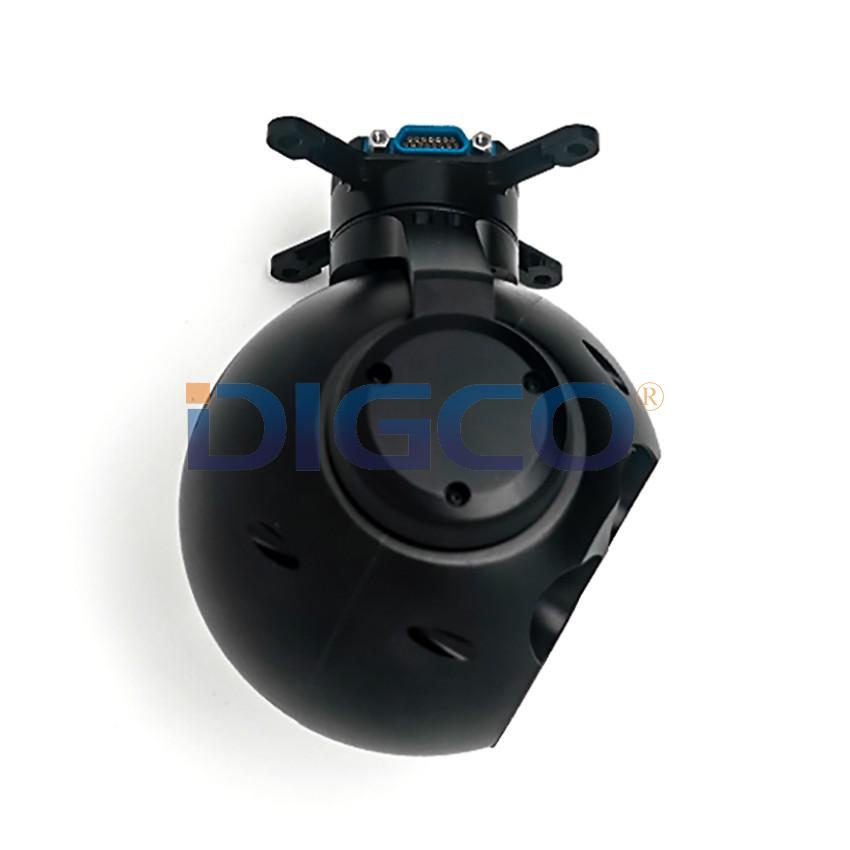

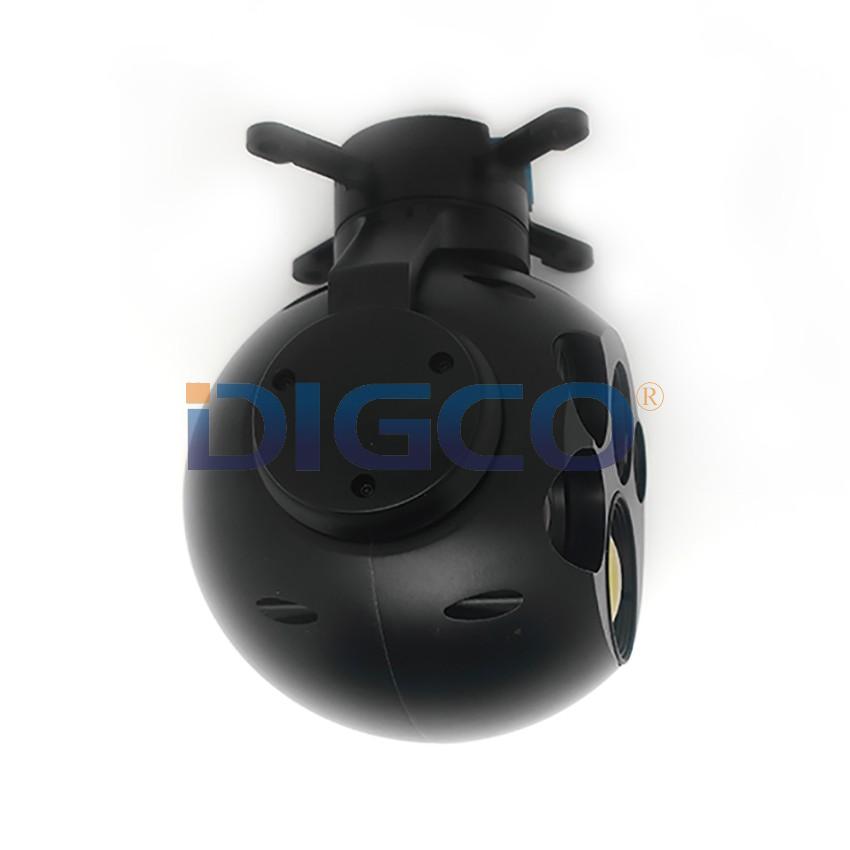

Compact multi-sensor gyro-stabilized surveillance system

Resolution

640×512@60fps

FOV(Focal length)

18.1°×14.5° (24mm)

DAYLIGHT IMAGING PERFORMANCE

Resolution

1920×1080 @60fps

FOV(Focal length)

52.8°×31.2° (5.6mm)

LASER RANGEFINDER

Wavelength

1535nm

Range capability

20~3000m

Accuracy

±1m

TRACKER

Tracking speed

±48pixels/frame,≧40°/s

Frame rate

60Hz

GIMBAL SPECIFICATIONS

LOS Pan range

360°

LOS Tilt range

-100°～+100° elevation/-45°～+45° azimuth

AZ/EL slew rate

Up to 100°/s

Angular accuracy

≦0.3°

INTERFACES

Driver

RS232/Ethernet TCP

Video output

Ethernet TCP

POWER

Power requirements

14～28V DC

Consumption

average≦10W maximum≦20W

OVERVIEW

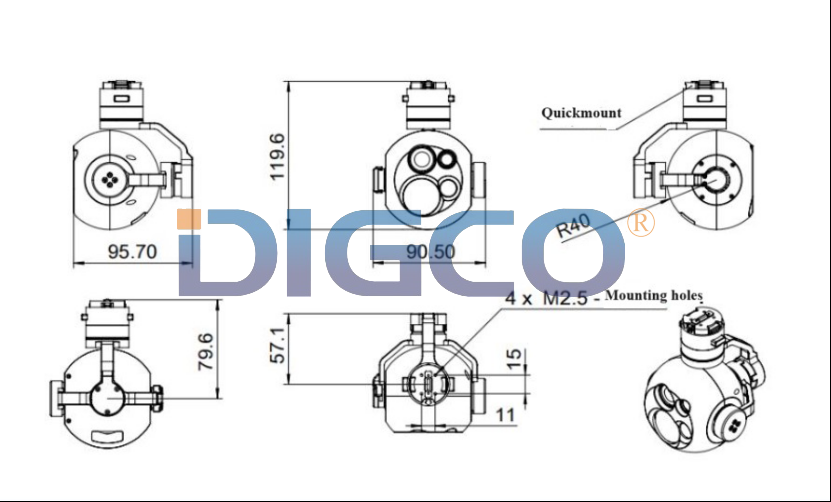

Gimbal size

90.50mm (D) x 119.60mm (H)

Gimbal weight

≤385g

ENVIRONMENTAL

Operating temperature

-20℃~+60℃

Storing temperature

-50℃~+70℃
