Ce:GAGG

Features:
●High density
●High light output
●High energy resolution
●No self radiation, no deliquescence
Application:
●Medical imaging: X-ray computed tomography (CT), positron emission tomography (PET), etc
●Security check
●Nuclear energy and high energy physics
●Scanning electron microscope (SEM)

EMAIL

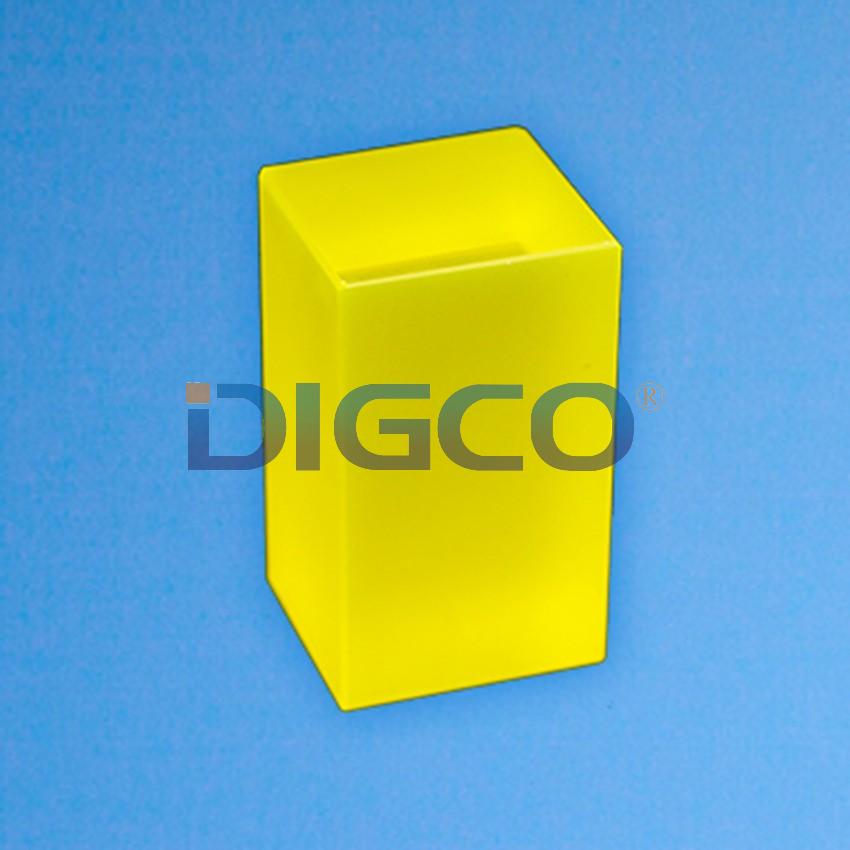

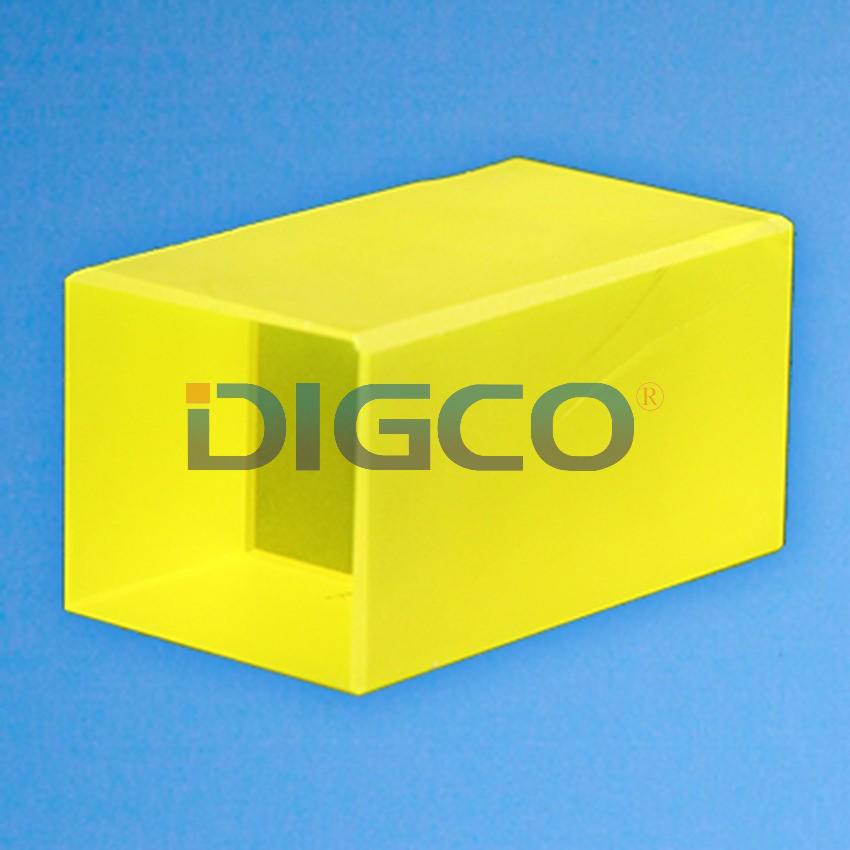

Cerium doped gadolinium aluminum gallium garnet (Ce: GAGG) is a kind of crystal with excellent scintillation properties. Ce: GAGG crystal is characterized by high density, high transmittance, large effective atomic number, high light yield, fast decay time, good energy resolution and stable physicochemical properties. Compared with the traditional scintillation crystal materials, the comprehensive performance is more excellent, and has the advantages of price and environmental protection. It has a wide range of applications in medical imaging, safety inspection, high energy physics, nuclear physics and other fields.

Chemical formula

Ce:Gd3Al2Ga3O12

Growth method

Czochralski

Atomic number

54.4

Density

6.63g/cm³

Hardness

8 Mohs

Melting point

1850℃

Coefficient of thermal expansion

TBA*10-6

Crystal orientation

<0.5°

Diameter tolerance

±0.05mm

Parallelism

<30″

Perpendicularity

<15′

Chamfering

<0.1*45°

Verticality Maximum size

MaxФ60mm

Note: Parameters above can be customized as required.
