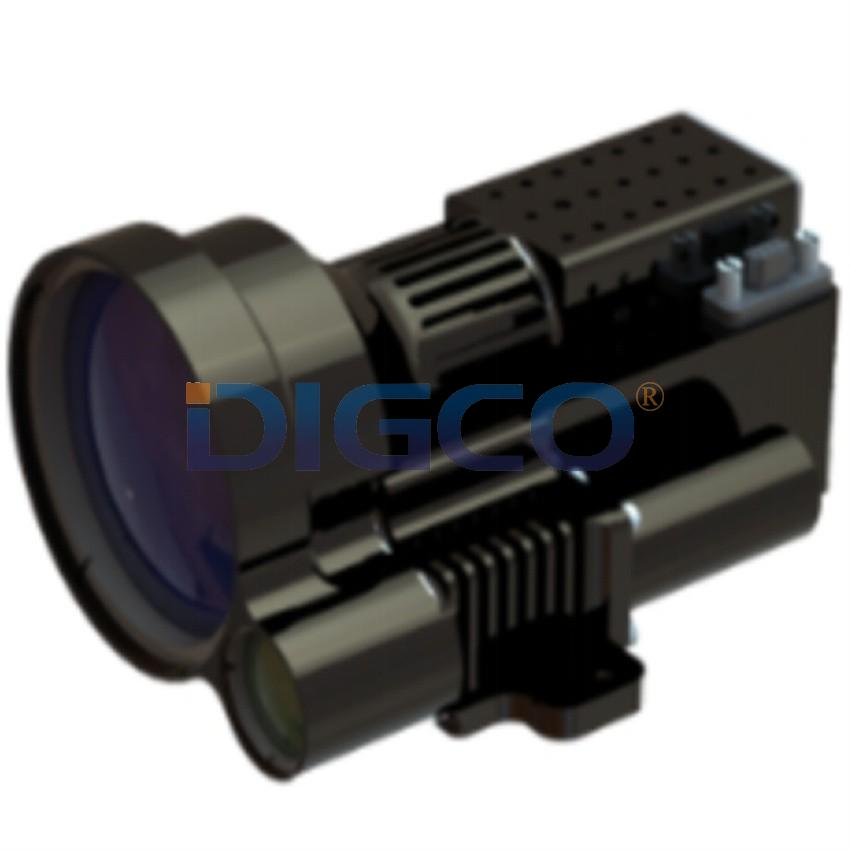

1535LRF01B1Z1 compact laser rangefinder transceiver

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Properties

Values

Remarks

Wavelength

1535nm


Range capability

100m~12000m

2.3mx4.6m target

Accuracy

±2m


Repetition Frequency(RF)

1Hz10Hz


Accuracy Rate

98%


Divergence

0.5mrad


Receiving Aperture

48mm


Communications Interface

RS422

customizable

Power supply voltage

28V±4V


Operating Power

4W


Standby Power

2W


Dimensions

120mm×70mm×60mm


Weight

300g


Operating Temperature

-40°C~+55°C


Cooling method

natural cooling


 Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are subject to change without notice.
