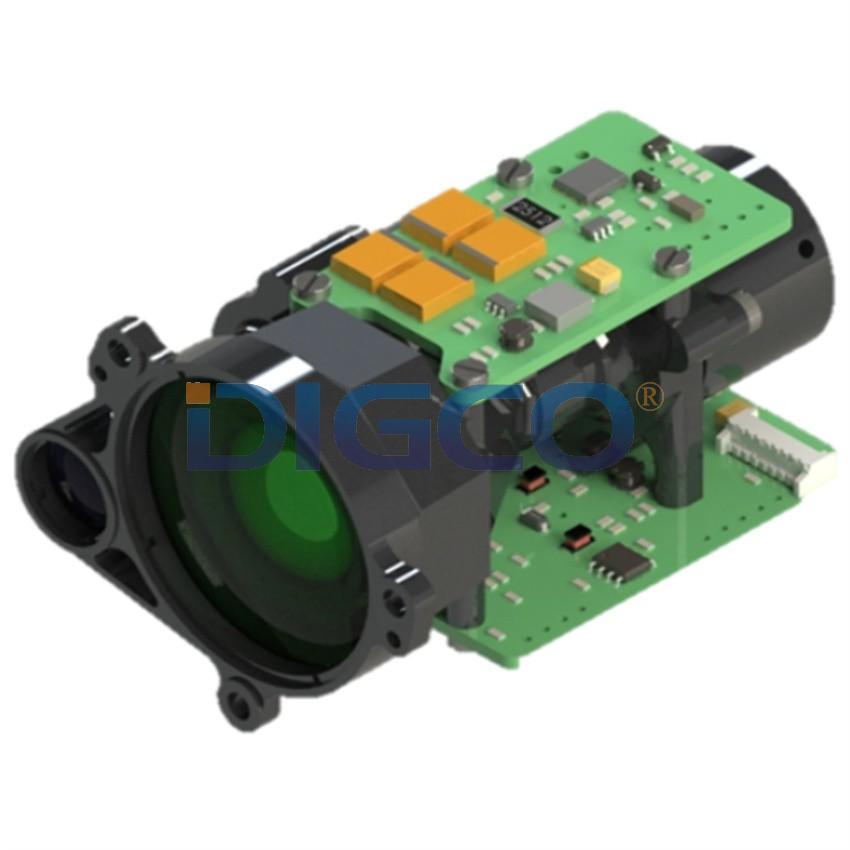

1535LRF01A5 compact laser rangefinder module

●Eye safe 1535nm QSW DPSS laser
●Low energy consumption
●Compact designs
●Long lifetime
●Easy to fix and operate
●In-depth customization

EMAIL

Applications

●Laser measuring tools in several industries like construction, renovation and real estate etc

●Industrial production process

●Military

●Forestry

●Sports

●3D modeling

Parameters

Properties

Values

Remarks

Wavelength

1535nm


Range capability

50m~6000m

2.3m×2.3m target

Accuracy

±2m

±1m customizable

Repetition Frequency(RF)

1Hz10Hz


Accuracy Rate

98%


Divergence

0.6mrad


Receiving Aperture

30mm

customizable

Communications Interface

RS422


Power supply voltage

12V


Operating Power

4W


Standby Power

1W


Dimensions

76mmx54mmx39mm

customizable

Weight

125g

customizable

Operating Temperature

-40°C~+55°C


Cooling method

natural cooling


Note: The target color, sizes, surface shape, atmospheric visibility etc. may have an impact on the measurement range. The specific technical parameters are subject to the product manual and are

subject to change without notice.
